A/C Refrigerant Oil Replacement
Recommended PAG oil: DENSO ND-OIL 8
- P/N 38897-PR7-A01AH: 120 ml (4 fl.oz)
- P/N 38899-PR7-A01: 40 ml (1 1/3 fl.oz)

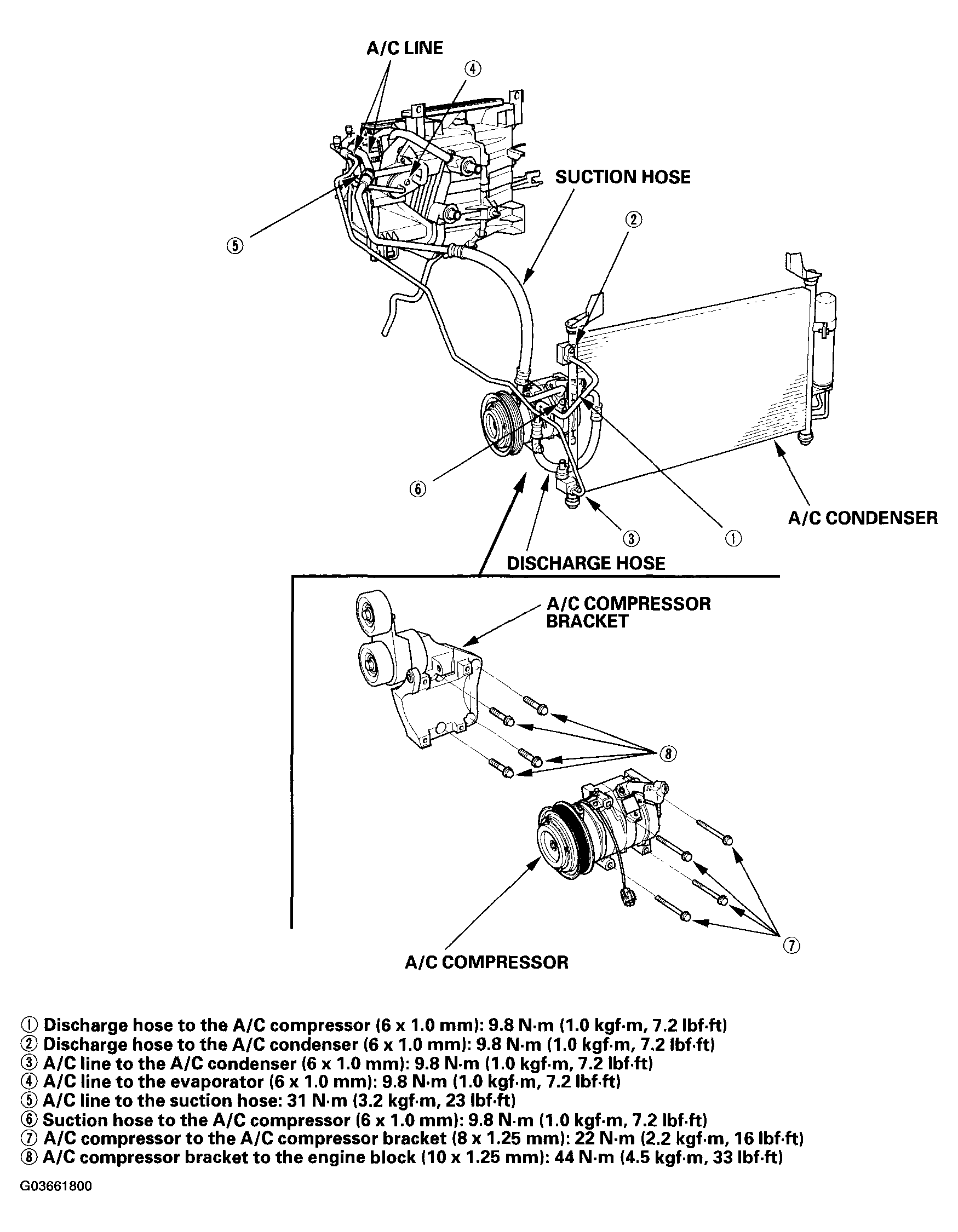

Add the recommended refrigerant oil in the amount listed if you replace any of the following parts.
- To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils.
- Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint; if it gets on the paint, wash it off immediately.
A/C condenser ....... 25 ml (5/6 fl.oz)
Evaporator .......... 45 ml (1 1/2 fl.oz)
Line or hose ........ 10 ml (1/3 fl.oz)
Receiver/Dryer ...... 10 ml (1/3 fl.oz)
Leakage repair ...... 25 ml (5/6 fl.oz)
A/C compressor ...... For A/C compressor replacement, subtract the volume of oil drained from the removed A/C compressor from 120 ml (4 fl.oz), and drain the calculated volume of oil from the new A/C compressor: 120 ml (4 fl.oz) - Volume of removed A/C compressor = Volume to drain from new A/C compressor.
NOTE:
Even if no oil is drained from the removed A/C compressor, don't drain more than 50 ml (1 2/3 fl.oz) from the new A/C compressor.
