Steering Angle Sensor Replacement

NOTE: Do not damage or drop the combination switch as the steering angle sensor is sensitive to shock and vibration.
  1. Remove the steering wheel (see STEERING WHEEL REMOVAL ).
  2. Remove the steering column covers and the cable reel (see CABLE REEL REPLACEMENT ).
  3. Remove the combination switch (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  4. Remove the combination light switch (A) and the wiper/washer switch (B).

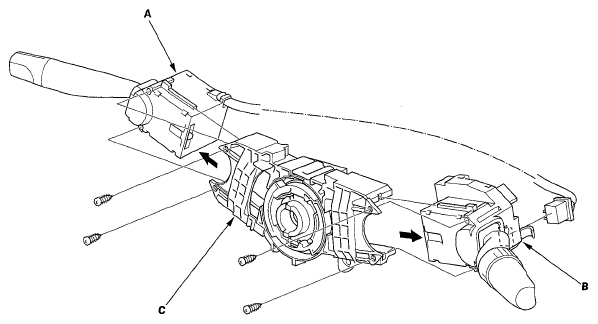

    Fig 1: Identifying Combination Light Switch, Wiper/Washer Switch And Combination Switch Body Assembly
    G05492198Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Replace the combination switch body assembly (C).
  6. Install the combination switch in the reverse order of removal.
    NOTE:
    • Do not remove the steering angle sensor from the combination switch body.
    • When installing the cable reel, set the turn signal canceling sleeve position (see INSTALLATION ).
