Pressure Reducing Mode

VSA NO valve closed, VSA NC valve open, inlet valve closed, front outlet valve open, pump motor ON. Caliper fluid flows through the outlet valve to the reservoir.

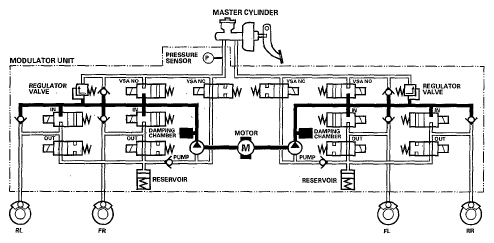

Fig 1: Identifying TCS Control (Pressure Reducing Mode)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
