VSA Modulator-Control Unit Removal and Installation: Removal

  1. Turn the ignition switch OFF.
  2. Disconnect the VSA modulator-control unit 47P connector (A) by pushing the lock (B) and pulling up the lever (C); the connector disconnects itself.

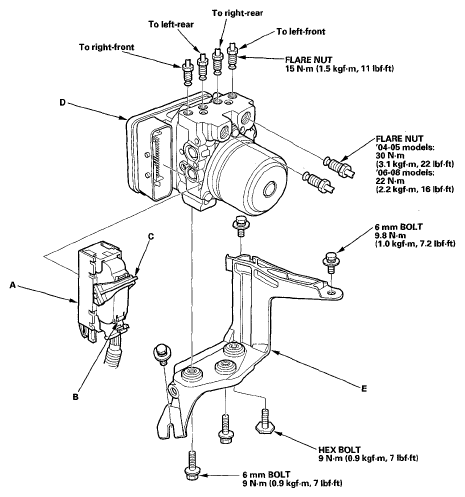

    Fig 1: VSA Modulator-Control Unit Components W/Torque Specifications
    G05492205Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the six brake lines from the VSA modulator-control unit (D).
  4. Remove the VSA modulator-control unit with the bracket (E) from the body.
  5. Remove the VSA modulator-control unit from the bracket.
