Wheel Sensor Replacement

NOTE: Install the sensor carefully to avoid twisting the wires.

Front

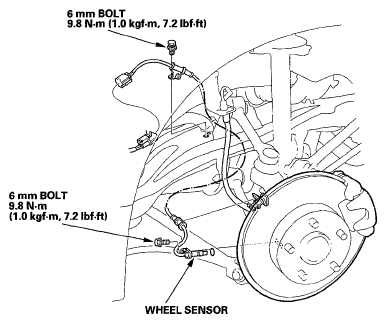

Fig 1: Wheel Sensor And Blot Location W/Torque Specification (Front)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

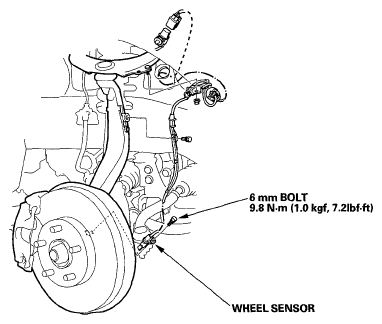

Fig 2: Wheel Sensor And Blot Location W/Torque Specification (Rear)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
