Yaw Rate-Lateral Acceleration Sensor Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use power tools.
  1. Turn the ignition switch OFF.
  2. Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
  3. Lift up the carpet (A).

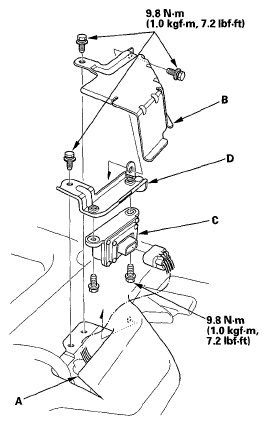

    Fig 1: Carpet, Sensor Cover And Bracket With Torque Specifications
    G05492199Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the sensor cover (B).
  5. Remove the yaw rate-lateral acceleration sensor (C) with the bracket (D).
  6. Remove the bracket.
  7. Install the sensor in the reverse order of removal.
  8. Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION MEMORIZATION  ).
