Audio-HVAC Sub Display Unit Connector End View

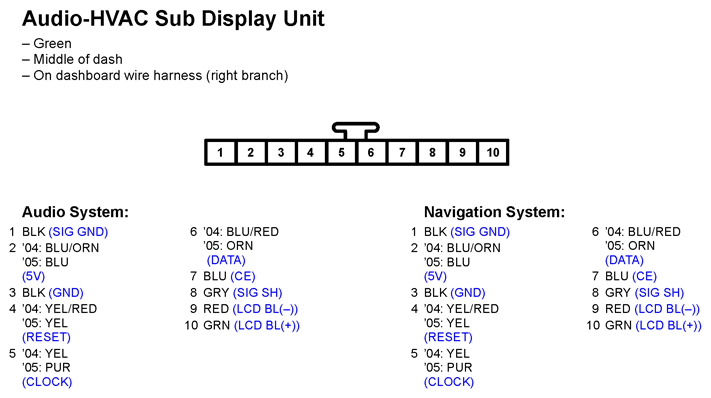

Fig 1: Audio-HVAC Sub Display Unit Connector End View
G11249453
