Ignition Key Switch/Key Light Connector End View

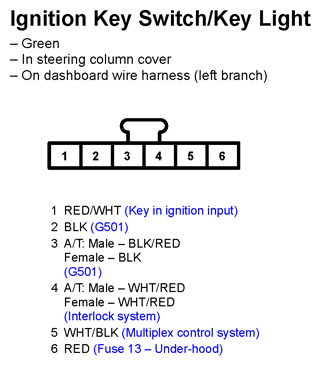

Fig 1: Ignition Key Switch/Key Light Connector End View
G11249428
