OEM Connector End Views
›
Connector End Views
›
Immobilizer Control Unit-Receiver Connector End View
Immobilizer Control Unit-Receiver Connector End View

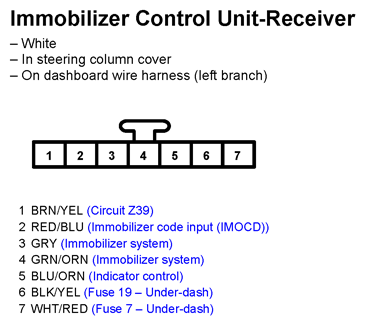

Fig 1: Immobilizer Control Unit-Receiver Connector End View
