Navigation Display Unit Connector End View
Navigation Display Unit Connector End View

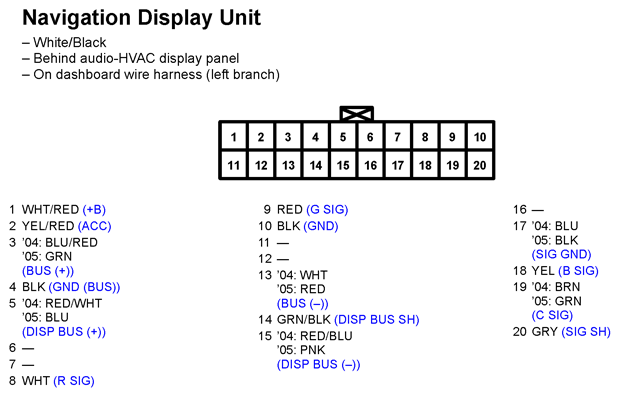

Fig 1: Navigation Display Unit Connector End View
