Throttle Actuator Control Module Connector End View

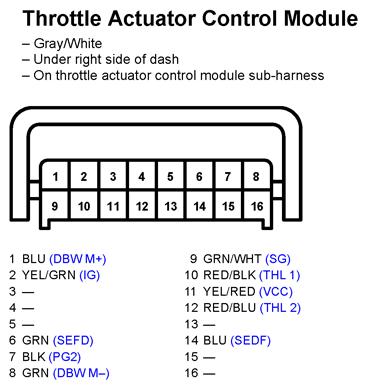

Fig 1: Throttle Actuator Control Module Connector End View
G11249469
