VSA Modulator-Control Unit Connector End View

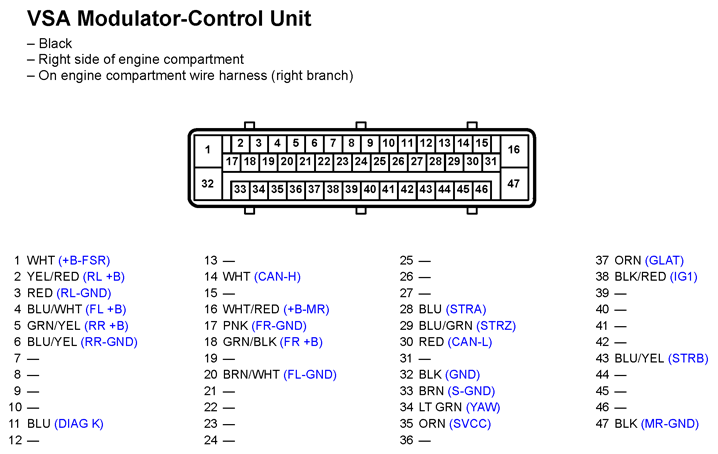

Fig 1: VSA Modulator-Control Unit Connector End View
G11249488
