Starting System
›
Circuit Diagram
Circuit Diagram

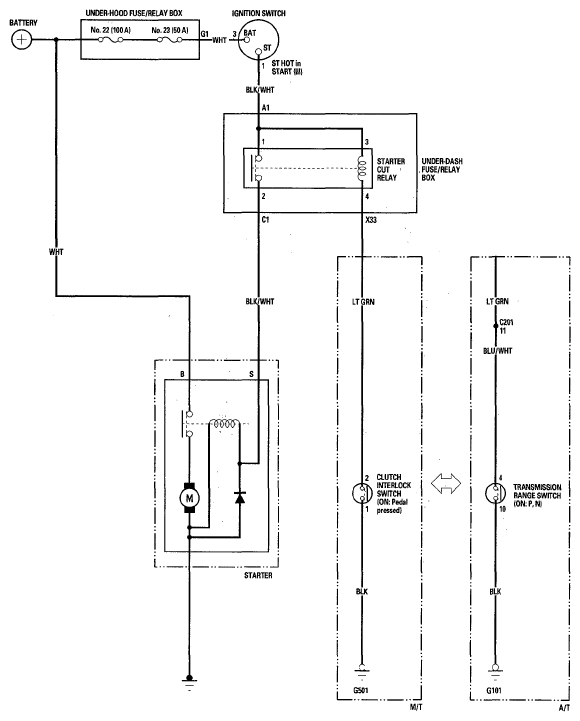

Fig 1: Starting System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
