Air Cleaner Element Inspection/ Replacement

  1. Remove the air cleaner bolts (A) and the air cleaner housing cover (B).

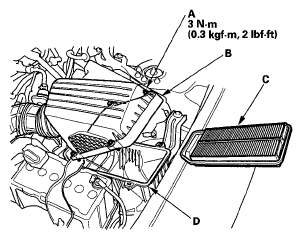

    Fig 1: Air Cleaner Bolts And Air Cleaner Housing Cover W/Torque Specification
    G05490838Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner element (C) from the air cleaner housing (D).
  3. Check the air cleaner element for damage or clogging. If it is damage or clogging, replace it.
    NOTE: Do not use compressed air to clean the air cleaner element.
  4. Clean and remove any debris from inside the air cleaner housing.
  5. Install the parts in the reverse order of removal.
  6. Reset the maintenance minder, if needed (see RESETTING THE MAINTENANCE INFORMATION DISPLAY ).
