DTC Troubleshooting Index

NOTE: Before you troubleshoot, record all freeze data and any on-board snapshot, and review General Troubleshooting Information (see GENERAL TROUBLESHOOTING INFORMATION  ).

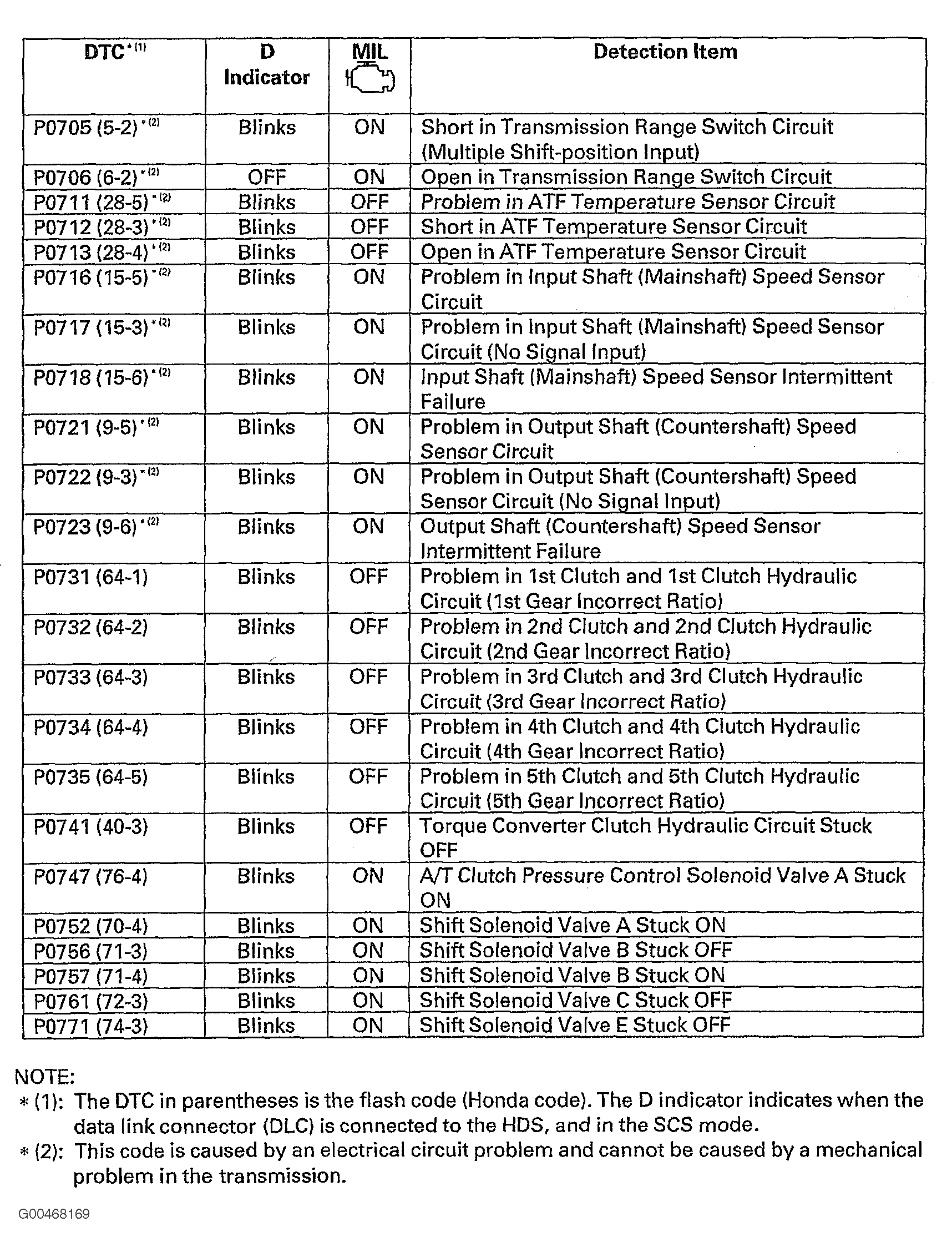

Fig 1: DTC Troubleshooting Chart (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: DTC Troubleshooting Chart (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: DTC Troubleshooting Chart (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
