PCM Electrical Connections '04-05 Models
PCM Electrical Connections '04-05 Models

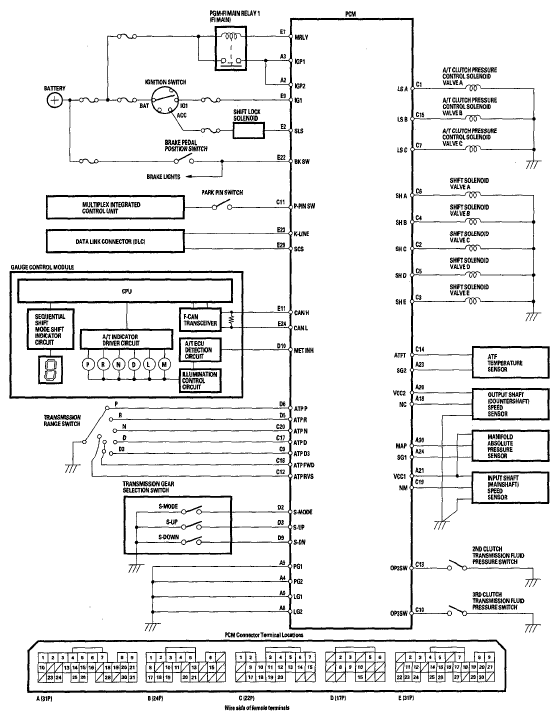

Fig 1: PCM Electrical Connections Circuit Diagram ('04-05 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
