System Description
›
Electronic Control System
›
PCM Electrical Connections '07-08 Models
PCM Electrical Connections '07-08 Models

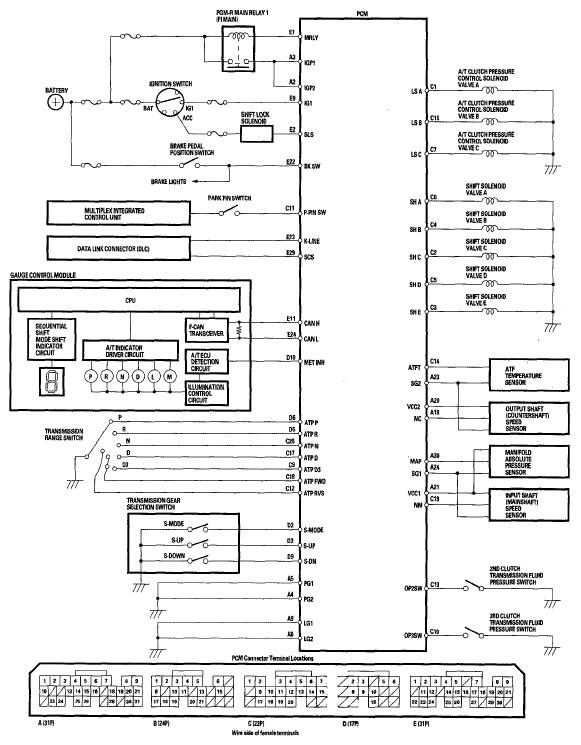

Fig 1: PCM Electrical Connections Circuit Diagram ('07-08 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
