End Cover Installation

Special Tools Required

Mainshaft holder 07GAB-PF50101 or 07GAB-PF50100

1. Install the mainshaft holder onto the mainshaft.
   Fig 1: Identifying Mainshaft Holder

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Lubricate the following parts with ATF:
   • Splines and threads of the mainshaft.
   • Splines of the mainshaft idler gear.
   • Old conical spring washer and old locknut.
3. Install the mainshaft idler gear (A), the old conical spring washer (B), and the old locknut (C) on the mainshaft (D), and tighten the locknut to 226 N.m (23.0 kgf.m, 166 lbf.ft).
   NOTE:

   • Do not tap the idler gear to install.
   • Use a torque wrench to tighten the locknut. Do not use an impact wrench.
     Fig 2: Identifying Mainshaft Idler Gear, Spring Washer And Mainshaft

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the park lever (A) and the park lever stop (B) on the control shaft (C), then install the lock bolt with a new lock washer (D). Do not bend the lock tab of the lock washer until step  18.
   Fig 3: Park Pawl Shaft, Park Pawl Spring, Park Lever Stop And Control Shaft W/Torque Specification

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install the park pawl shaft (E), the park pawl spring (F), the park pawl (G), and the stop shaft (H) on the transmission housing.
6. Lubricate the following parts with ATF:
   • Threads and splines of the countershaft.
   • Old conical spring washer and old locknut.
   • Areas where the park gear contacts the conical spring washer.
7. Install the park gear (I), the old conical spring washer (J), and the old locknut (K) on the countershaft.
8. Lift the park pawl up, and engage it with the park gear, then tighten the locknut to 226 N.m (23.0 kgf.m, 166 lbf.ft).
   NOTE:

   • Do not tap the park gear to install.
   • Use a torque wrench to tighten the locknut. Do not use an impact wrench.
   • Countershaft locknut has left-hand threads.
9. Remove the locknuts and the conical spring washers from the mainshaft and countershaft.
10. Lubricate the threads of the shafts, new locknuts, and new conical spring washers with ATF.
11. Install new conical spring washers (A) with the stamped mark side up in the direction shown, and install a new mainshaft locknut (B), a new countershaft locknut (C), and a new secondary shaft locknut (D).
    Fig 4: Identifying Spring Washers, Mainshaft Locknut, Countershaft Locknut And Secondary Shaft Locknut

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Tighten the locknuts to 167 N.m (17.0 kgf.m, 123 lbf.ft).
    NOTE:

    • Be sure to install the conical spring washers in the direction shown.
    • Use a torque wrench to tighten the locknut. Do not use an impact wrench.
    • Countershaft and secondary shaft locknuts have left-hand threads.
13. Remove the mainshaft holder from the mainshaft.
14. Stake the locknuts into the shafts to a depth (A) of 0.7-1.3 mm (0.03-0.05 in.) using a 3.5 mm punch (B).
    Fig 5: Staking Locknuts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
15. Install the selector control lever (A) on the selector control shaft (B), and install the bolt with a new lock washer (C), then bend the lock tab of the lock washer against the bolt head.
    Fig 6: Selector Control Lever W/Torque Specification

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
16. Set the park lever in the P position, then check that the park pawl (A) engages the park gear (B).
    Fig 7: Engaging Park Pawl And Park Gear W/Torque Specification

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
17. If the park pawl does not engage fully, check the distance (C) between the park pawl shaft (D) and the park lever roller pin (E) (see PARK LEVER STOP INSPECTION AND ADJUSTMENT  ).
18. Tighten the lock bolt, and bend the lock tab of the lock washer (F) against the bolt head.
19. Install the ATF feed pipe (A) into the idler gear shaft, and install the ATF lubrication pipe (B) into the transmission housing.
    Fig 8: Identifying ATF Feed Pipe And ATF Lubrication Pipe

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
20. Install a new gasket (A) on the transmission housing, and install the two dowel pins (B) and new O-rings (C) over the top of the ATF feed pipes.
    Fig 9: Dowel Pins, End Cover, Selector Control Shaft And Harness Clamp Bracket W/Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
21. Install the end cover (D), and tighten the three special bolts (E) and the 6 x 1.0 mm bolts (12 bolts).
22. Install the harness clamp bracket (F) on the end cover.
23. Move the selector control shaft (A) from the P position to the N position by turning the selector control lever on the torque converter side.
    NOTE: Do not squeeze the end of the selector control shaft tips together when turning the shaft. If the tips are squeezed together it will cause a faulty shift position signal or position due to the play between the selector control shaft and the transmission range switch.
    Fig 10: Moving Selector Control Shaft From P Position To N Position

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
24. Align the cutouts (A) on the rotary-frame with the neutral positioning cutouts (B) on the transmission range switch (C), then put a 2.0 mm (0.08 in.) feeler gauge blade (D) in the cutouts to hold in the N position.
    NOTE: Be sure to use a 2.0 mm (0.08 in.) blade or equivalent to hold the switch in the N position.
    Fig 11: Aligning Rotary-Frame Cutouts With Neutral Positioning Cutouts On Transmission Range Switch

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
25. Install the transmission range switch (A) gently on the selector control shaft (B) while holding it in the N position using the 2.0 mm (0.08 in.) blade (C).
    Fig 12: Identifying Transmission Range Switch And Selector Control Shaft

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
26. Tighten the bolts on the transmission range switch while you continue to hold it in the N position. Do not move the transmission range switch when tightening the bolts. Remove the feeler gauge.
    Fig 13: Transmission Range Switch Bolts W/Torque Specification

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
27. Connect the transmission range switch connector (A) securely, then install the harness clamps (B) on the clamp bracket (C).
    Fig 14: Transmission Range Switch Connector, Harness Clamps And Clamp Bracket W/Torque Specification

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
28. Install the transmission range switch cover (D).
29. Install a new gasket (B) on the transmission housing, and install the ATF pipe (C) and the ATF joint pipes (D).
    Fig 15: O-Rings, ATF Pipe And ATF Joint Pipes W/Torque Specification

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
30. Install new O-rings (E) over the ATF joint pipes, and install A/T clutch pressure control solenoid valve A.
31. Install a new gasket (A) and the ATF joint pipes (D) on the transmission housing, and install new O-rings (E) over the ATF joint pipes.
    Fig 16: A/T Clutch Pressure Control Solenoid Valves And ATF Joint Pipes W/Torque Specification

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
32. Install A/T clutch pressure control solenoid valves B and C, and the harness clamp bracket (F).
33. Install a new O-ring (A) on the dipstick guide pipe (B), then install the dipstick guide pipe.
    Fig 17: O-Ring And Dipstick Guide Pipe W/Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

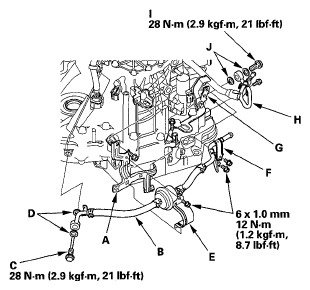

34. Install the ATF filter bracket (A) on the transmission housing, then install the ATF cooler line/ATF filter (B) with the line bolt (C) and new sealing washers (D). Secure the ATF filter with its bracket (E).
    Fig 18: ATF Filter Bracket, ATF Cooler Line/ATF Filter And Transmission Hanger W/Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
35. Secure the line brackets (F) with two bolts on the transmission hanger (G).
36. Install the ATF cooler outlet line (H) with the line bolt (I) and new sealing washers (J).
37. Install the breather cap (A) on the breather pipe (D) so its arrow (E) points to A/T clutch pressure control solenoid valves B and C.
    Fig 19: Identifying Breather Cap, Breather Pipe And A/T Clutch Pressure Control Solenoid Valves

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
38. Install the filler cap with its handle (F) pointing in the direction shown.
