Exploded View

Torque Specifications:

6x 1.0 mm: 12 N.m (1.2 kgf.m, 8.7 lbf.ft)

8 x 1.25 mm: 18 N.m (1.8 kgf.m, 13 lbf.ft)

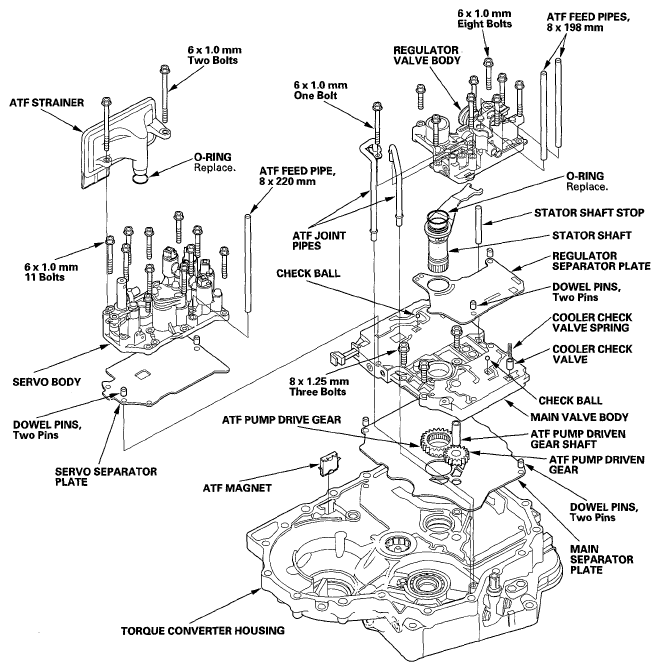

Fig 1: Exploded View Of Valve Body And ATF Strainer
G05491646Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: Refer to the exploded view above as needed during the following procedures.
  1. Make sure that the ATF magnet is clean and installed in the torque converter housing.
  2. Install the main separator plate (A) and the two dowel pins on the torque converter housing. Then install the ATF pump drive gear (B), the driven gear (C), and the ATF pump driven gear shaft (D). Install the ATF pump driven gear with its grooved and chamfered side facing down.
    Fig 2: Identifying ATF Pump Drive Gear, Driven Gear And ATF Pump Driven Gear Shaft
    G05491647Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the main valve body.
  4. Make sure the ATF pump drive gear (A) rotates smoothly in the normal operating direction, and the ATF pump driven gear shaft (B) moves smoothly in the axial and normal operating direction.
    Fig 3: Checking ATF Pump Driven Gear Shaft
    G05491648Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the ATF pump drive gear and the ATF pump driven gear shaft do not move smoothly, loosen the main valve body bolts. Realign the ATF pump driven gear shaft, and retighten the bolts to the specified torque, then recheck. Failure to align the ATF pump driven gear shaft correctly will result in a seized ATF pump drive gear or ATF pump driven gear shaft.
  6. Make sure that the two check balls and the cooler check valve are in the main valve body, then install the cooler check valve spring in the cooler check valve.
  7. Install the servo separator plate and the two dowel pins on the main valve body.
  8. Install the servo body (11 bolts). Install the ATF strainer with the two bolts in the bolt holes (A) in step  12, and install the baffle plate with the two bolts in the bolt holes (B) (see step  2 ).
    Fig 4: ATF Strainer And Baffle Plate Bolt Holes W/Torque Specifications
    G05491649Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install the regulator separator plate and the two dowel pins on the main valve body.
  10. Install a new O-ring on the stator shaft, and install the stator shaft and the stator shaft stop.
  11. Install the regulator valve body (eight bolts).
  12. Install a new O-ring on the ATF strainer, and install the ATF strainer (two bolts).
  13. Install the ATF joint pipes (one bolt).
  14. Install the ATF feed pipes in the regulator valve body and the servo body.
