Home › Acura › 2004 › TSX Standard › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector End Views › Audio Unit Connector End View

Audio Unit Connector End View

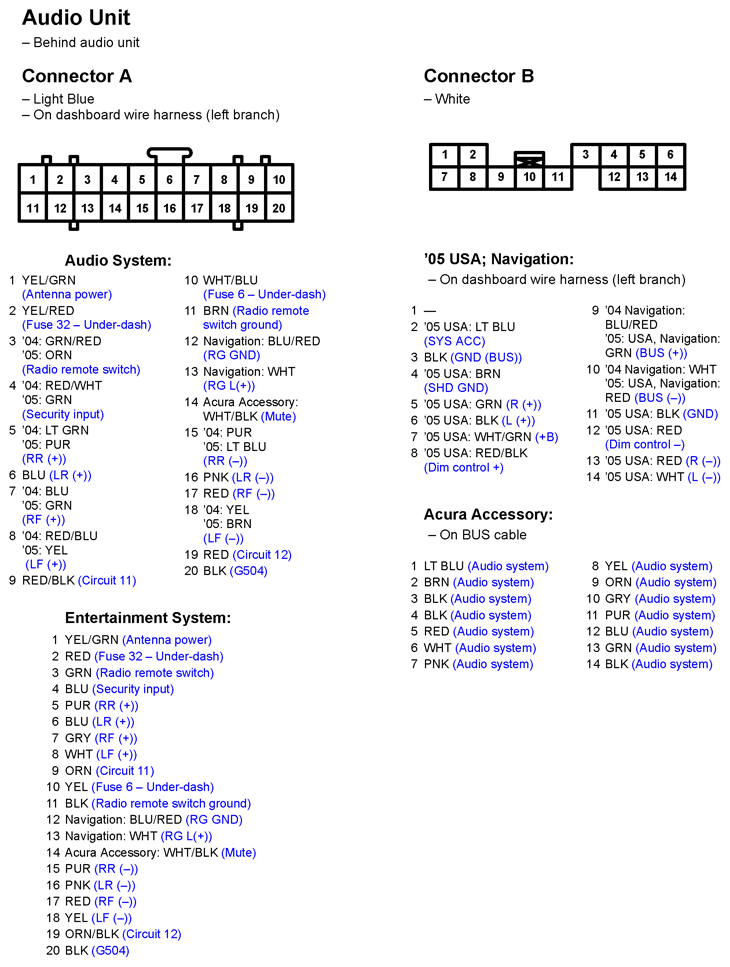

Fig 1: Audio Unit Connector End View
G11249489
