Headlight Assembly, Left Connector End View

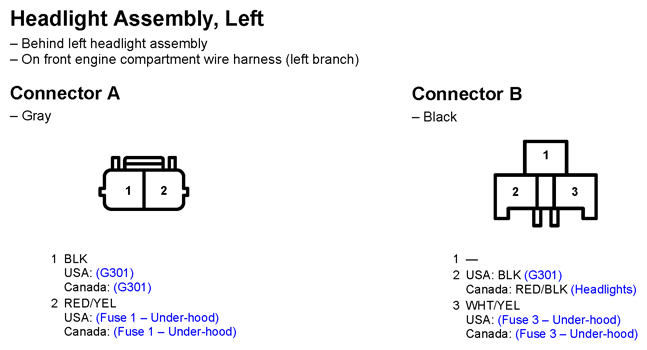

Fig 1: Headlight Assembly, Left Connector End View
G11249496
