Headlight Assembly, Right Connector End View

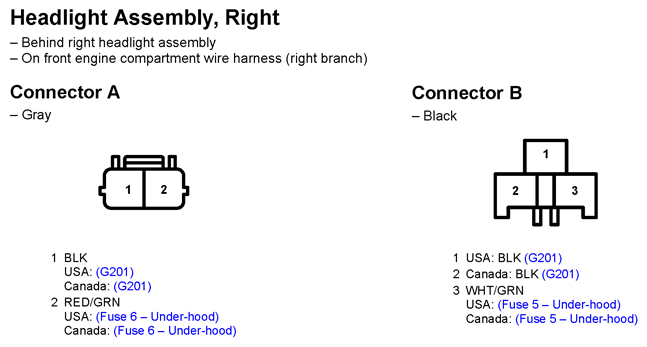

Fig 1: Headlight Assembly, Right Connector End View
G11249497
