Front Seat Armrest Replacement

NOTE: Take care not to tear the seams or damage the seat covers.

On driver's seat:

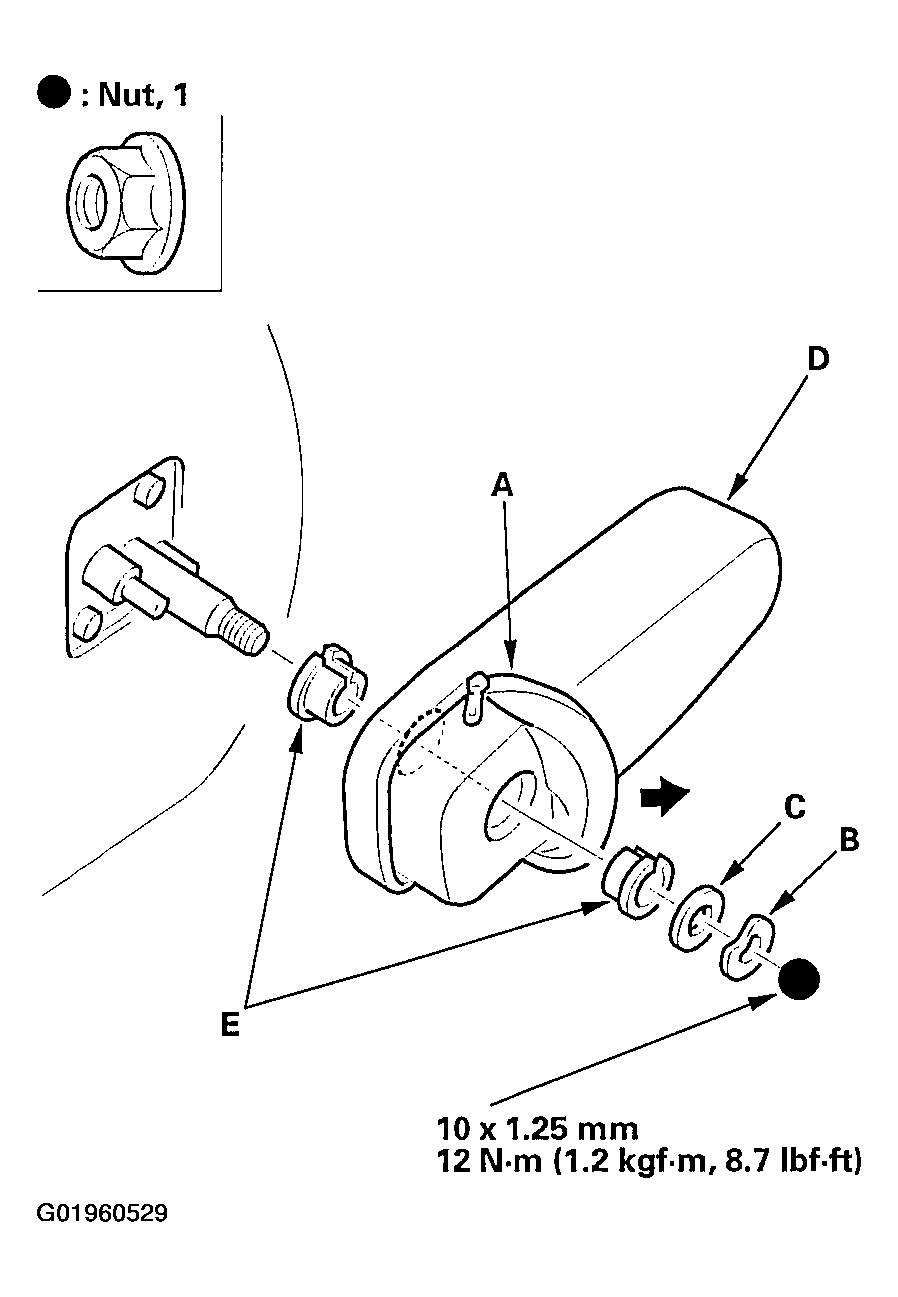

Unzip the armrest cover (A), and pull back the armrest cover.

Fig 1: Unzipping & Pulling Back Armrest Cover
Remove the nut, the wave washer (B), and the washer (C), then remove the armrest (D). If necessary, remove the bushings (E) from the armrest.
Remove the bolts, then remove the armrest bracket (A).

Fig 2: Removing Armrest Bracket
Install the armrest in the reverse order of removal.
