Without DPMS: Notes

  1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 8P connector (A) from the power mirror actuator (B).

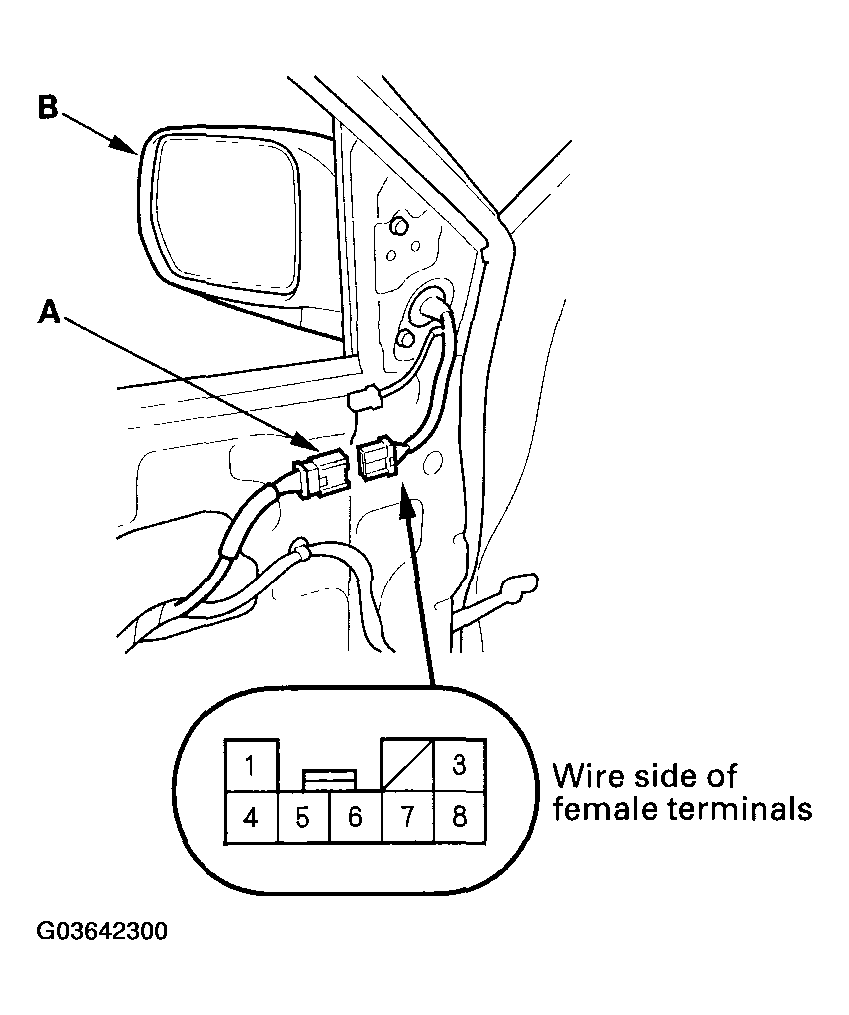

    Fig 1: Disconnecting 8P Connector From Power Mirror Actuator
    G03642300Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check actuator operation by connecting power and ground according to Fig 2 .
    Fig 2: Checking Actuator Operation By Connecting Power And Ground Chart
    G03642301Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the mirror fails to work properly, replace the mirror actuator.
