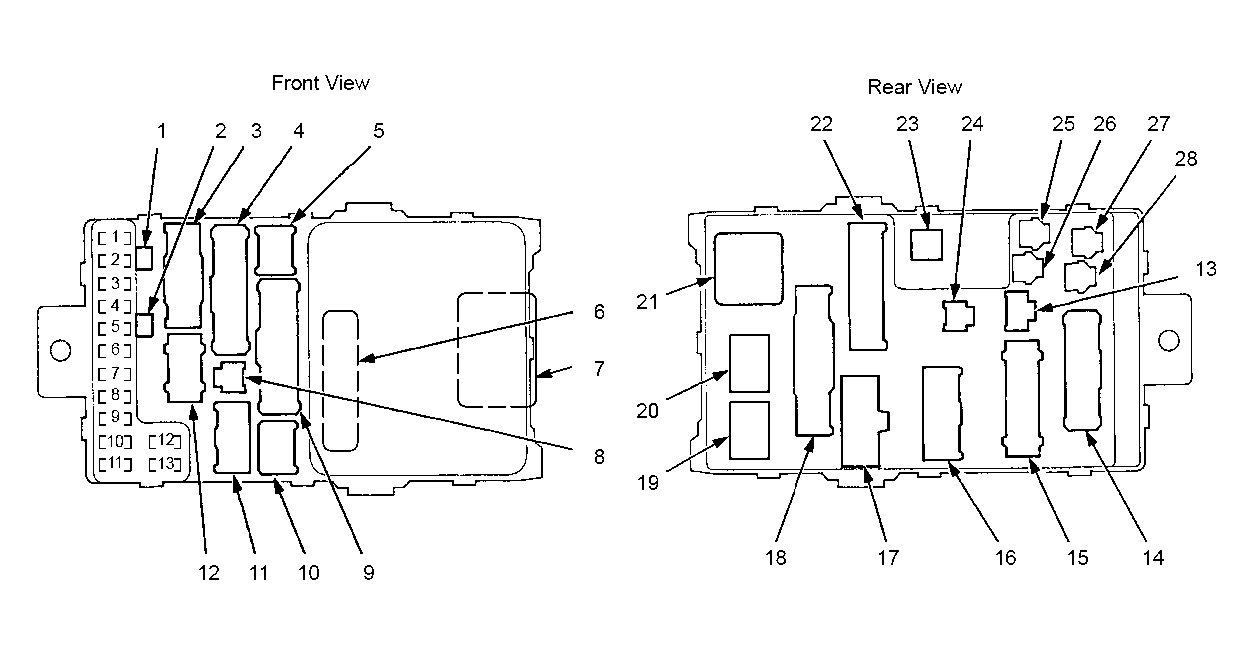

| 1 |
15A |
RED/WHT |
Fuel pump, SRS unit (VA) |
| 2 |
10A |
BLK/WHT |
SRS unit (VB) |
| 3 |
7.5 A |
BLK/YEL |
A/C compressor clutch relay, Blower motor relay, Climate control panel, Climate control unit, A/C condenser fan relay, Fan control relay, Rear blower motor relay, Rear heater-A/C control panel-unit, Rear mode control motor, Rear window defogger relay, Recirculation control motor |
| 4 |
7.5 A |
ORN |
Automatic inside dimming mirror, Automatic lighting control unit, Electrical compass unit (without navigation system), Multi-information display unit (without navigation system), Optional connector R, Power mirror actuator, Power mirror defogger, Seat heater relay |
| 5 |
10A |
YEL/RED |
Daytime running lights control unit (Canada) |
| 6 |
15A |
BLK/YEL |
PCM, VTM-4 relay
, Shift lock relay |
| 7 |
7.5 A |
YEL/GRN |
OPDS unit, Seat weight sensor unit |
| 8 |
7.5 A |
YEL/BLK |
Accessory power socket relay, Optional connectors, Shift lock solenoid, Rear accessory power socket relay |
| 9 |
10A |
YEL |
Automatic lighting control unit, Brake light failure sensor, Cruise control main switch indicator, Driver's multiplex control unit, Driver's power seat control unit, Gauge assembly, Shift lock relay
, Keyless receiver unit, Passenger multiplex control unit, Passenger's airbag cutoff indicator, Rain sensor (with Auto wiper), Reverse relay, VTM-4 control unit, VTM-4 relay
, VTM-4 lock switch, Windshield washer motor (with Auto wiper), TPMS control unit |
| 10 |
7.5 A |
YEL/RED |
Turn signal/hazard relay |
| 11 |
10A |
BLK/YEL |
Rear window intermittent wiper control unit, Rear window wiper motor, Rear window washer motor |
| 12 |
30 A |
GRN/BLK |
Intermittent wiper relay, Windshield washer motor, Windshield wiper motor (with Auto wiper), Automatic wiper relay (with Auto wiper) |
| 13 |
- |
- |
Not used |
