Front Seat Lumbar Support Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

NOTE:

Take care not to bend the cable.
Take care not to tear the seams or damage the seat covers.
Put on gloves to protect your hands.

Remove these items:
- Back panel (see step 3 )
- Center cover (see step 4 )

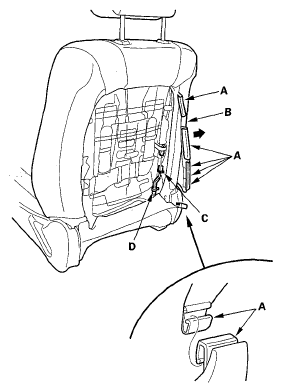

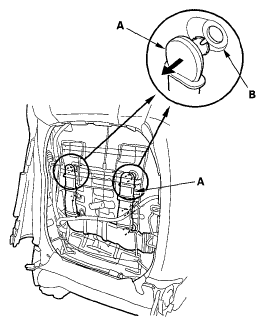

Driver's: Release the hooks (A), then turn over the seat-back cover (B). Disconnect the power lumbar support motor connector (C), then release the harness band (D).

Fig 1: Identifying Front Seat Back Side Hooks And Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.

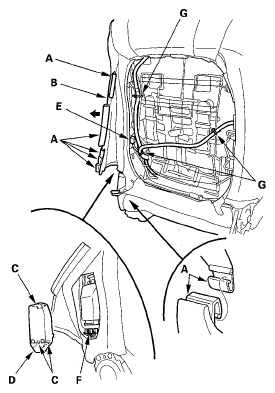

Passenger's: Release the hooks (A), then turn over the seat-back cover (B). Detach the hooks (C), then remove the OPDS unit cover (D). Disconnect the OPDS unit sensor connector (E) and power lumbar support motor connector (F), then release the harness band (G).

Fig 2: Identifying Front Seat Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the hook of the yoke wire (A) from the top of the basket (B) to loosen the lumbar support cable (C), then disconnect it.

Fig 3: Identifying Yoke Wire, Basket And Lumbar Support Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.

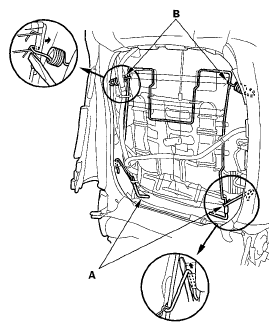

Release both lower springs (A) from inside the seat-back. Release the lumbar support from both upper springs (B).

Fig 4: Identifying Lower Springs And Upper Springs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull out the duct (A) from the seat-back pad (B). A.

Fig 5: Pulling Duct Of Seat-Back Pad
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Driver's: Pull back the seat-back cover (A) and seat-back pad (B), then remove the bolts.

Fig 6: Seat-Back Cover, Seat-Back Pad And Fasteners With Torque Specifications (
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Passenger's: Pull back the seat-back cover (A) and seat-back pad (B), then remove the bolts (C) and screw (D).

Fig 7: Seat-Back Cover, Seat-Back Pad And Fasteners With Torque Specifications (
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the wire tie (A), then remove the lumbar support cable (B) and motor (C) as an assembly.

Fig 8: Identifying Lumbar Support Cable, Motor And Wire Tie
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the lumbar support in the reverse order of removal, and note these items:
- Make sure the cable is connected securely.
- To prevent wrinkles when installing a seat-back cover, make sure the material is stretched evenly over the pad before securing the hook strips.
- Replace the back panel clips with new ones.
- Replace the metal clips with new ones.
