Collision Mitigation Brake System (CMBS)
›
Circuit Diagram
Circuit Diagram

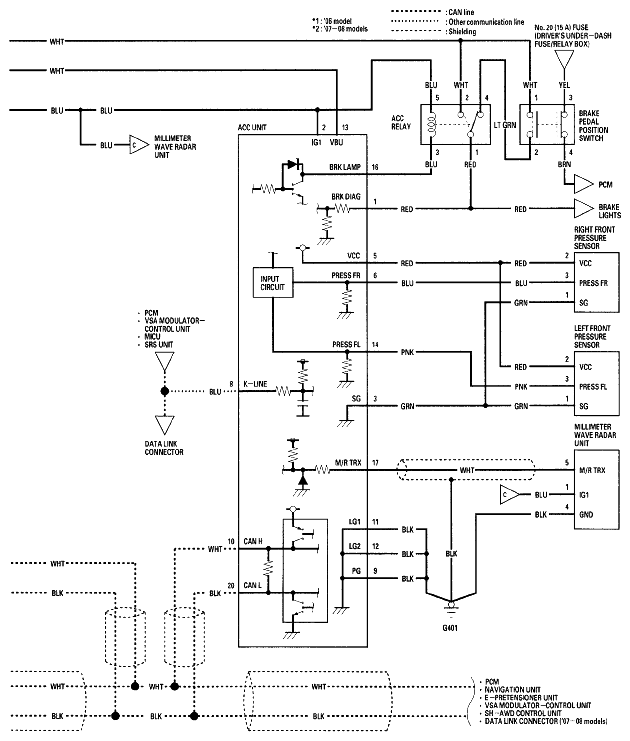

Fig 1: Collision Mitigation Brake System Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

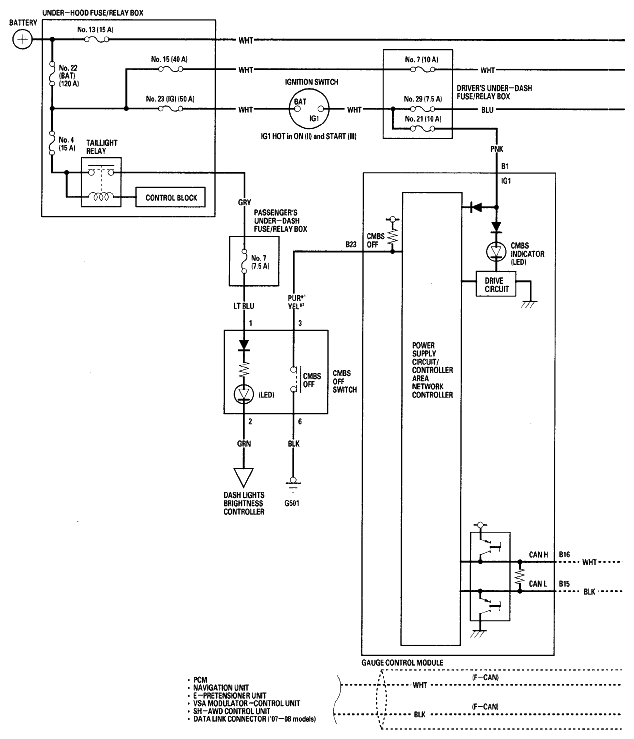

Fig 2: Collision Mitigation Brake System Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
