AFS Off/VSA Off Switch Connector End View
AFS Off/VSA Off Switch Connector End View

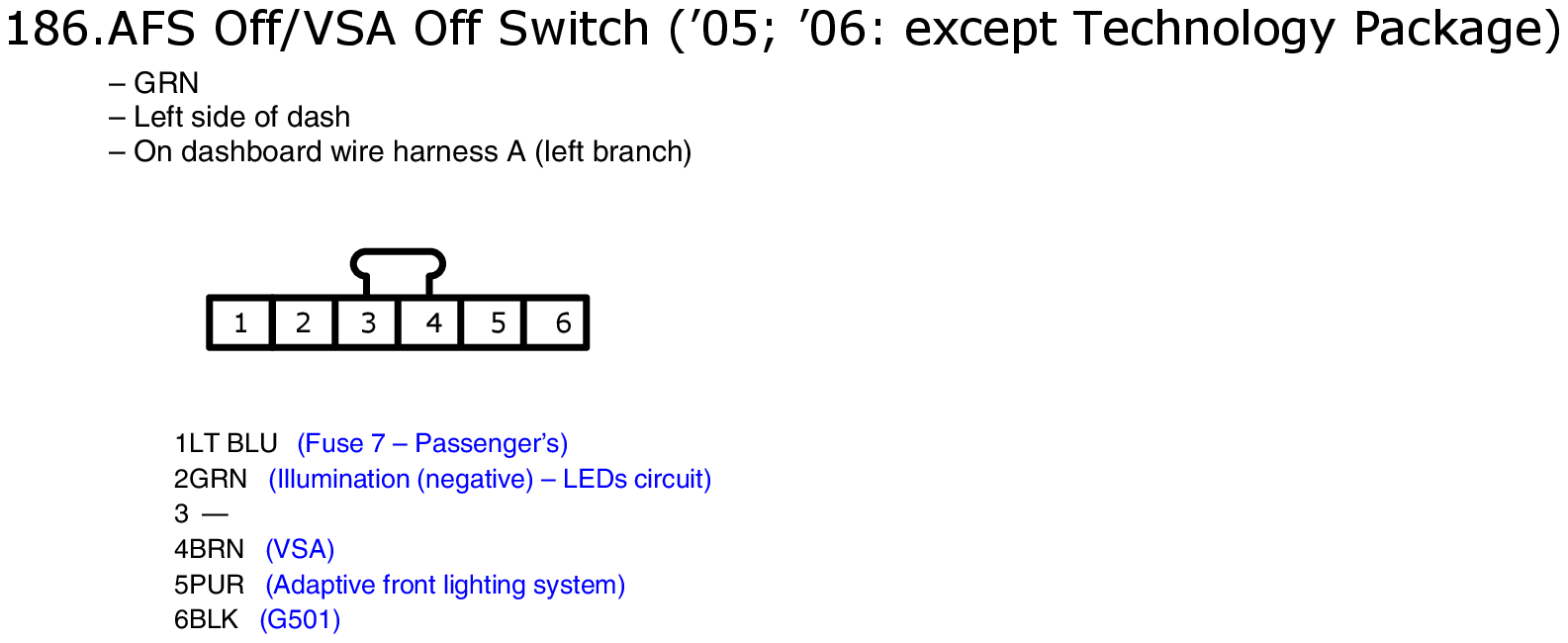

Fig 1: AFS Off/VSA Off Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
