C772 Connector End View
C772 Connector End View

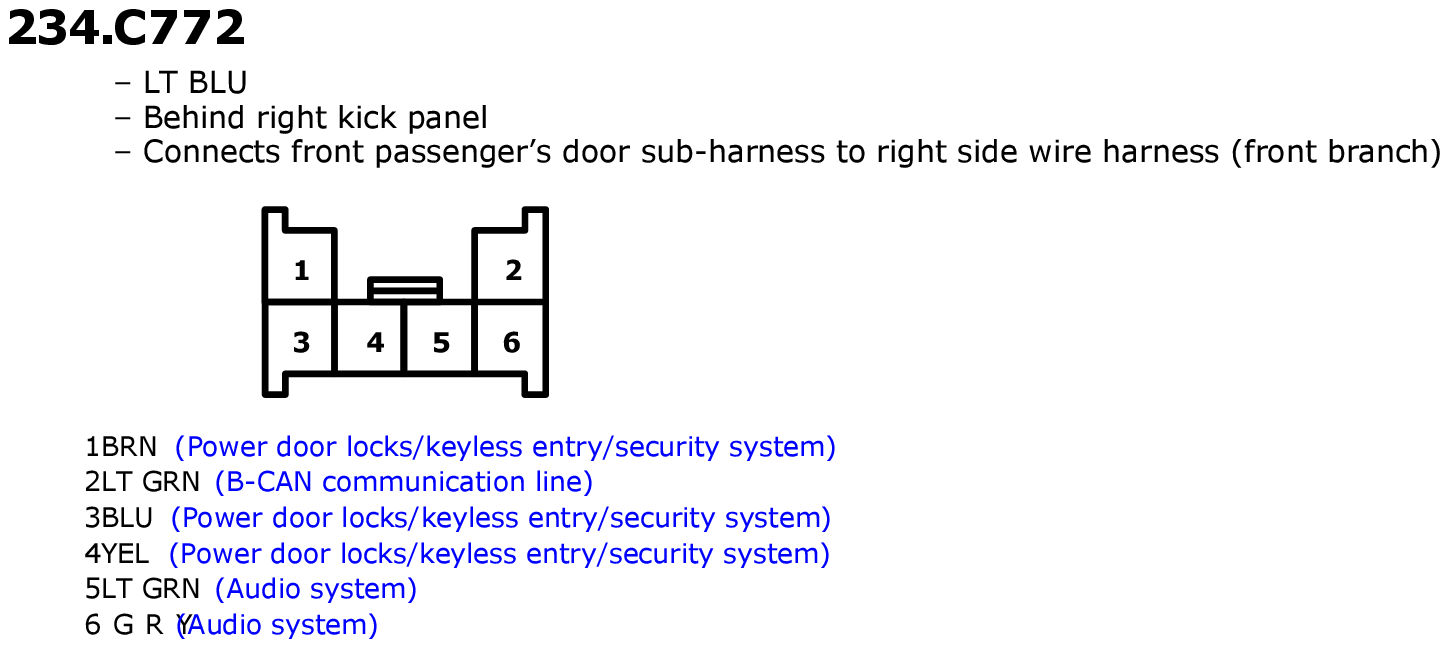

Fig 1: C772 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

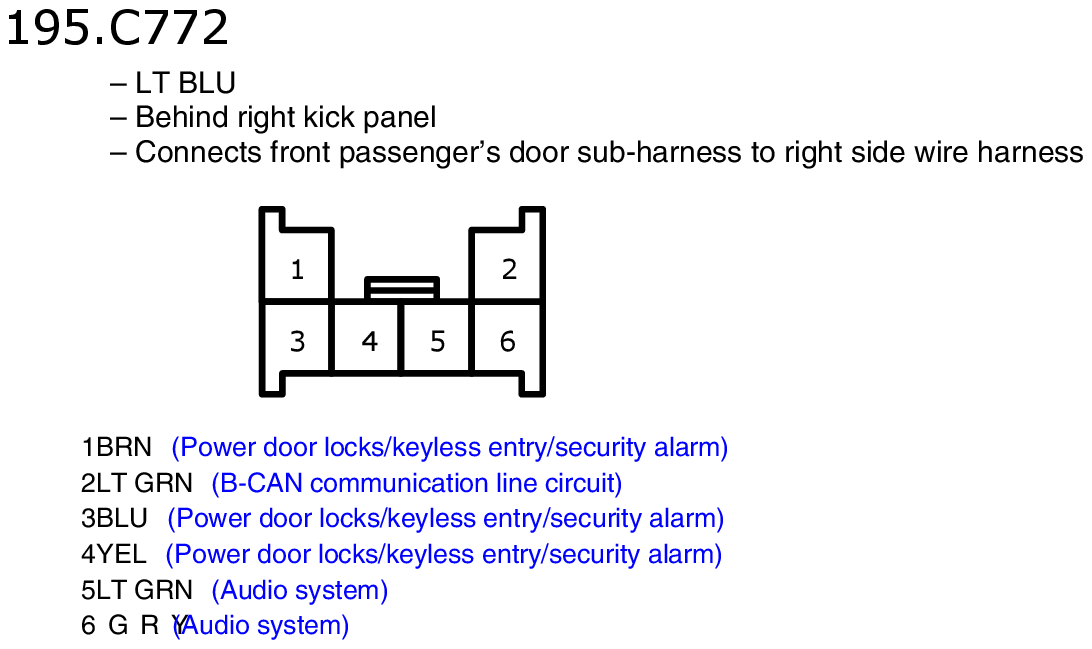

Fig 1: C772 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
