Display Panel Control Unit Connector End View
Display Panel Control Unit Connector End View

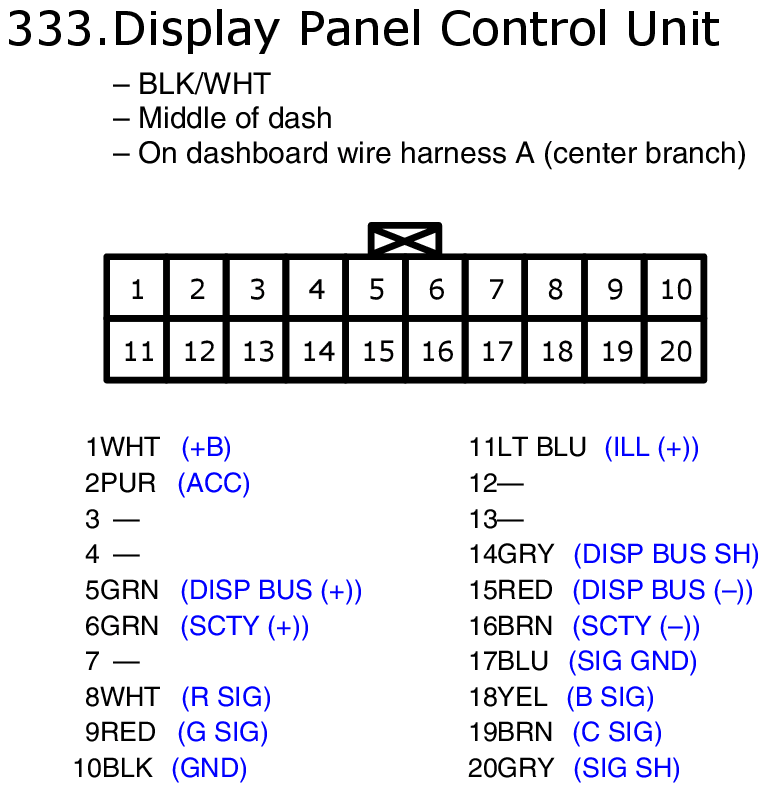

Fig 1: Display Panel Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
