Driver's Power Seat Slide Position Sensor Connector End View
Driver's Power Seat Slide Position Sensor Connector End View

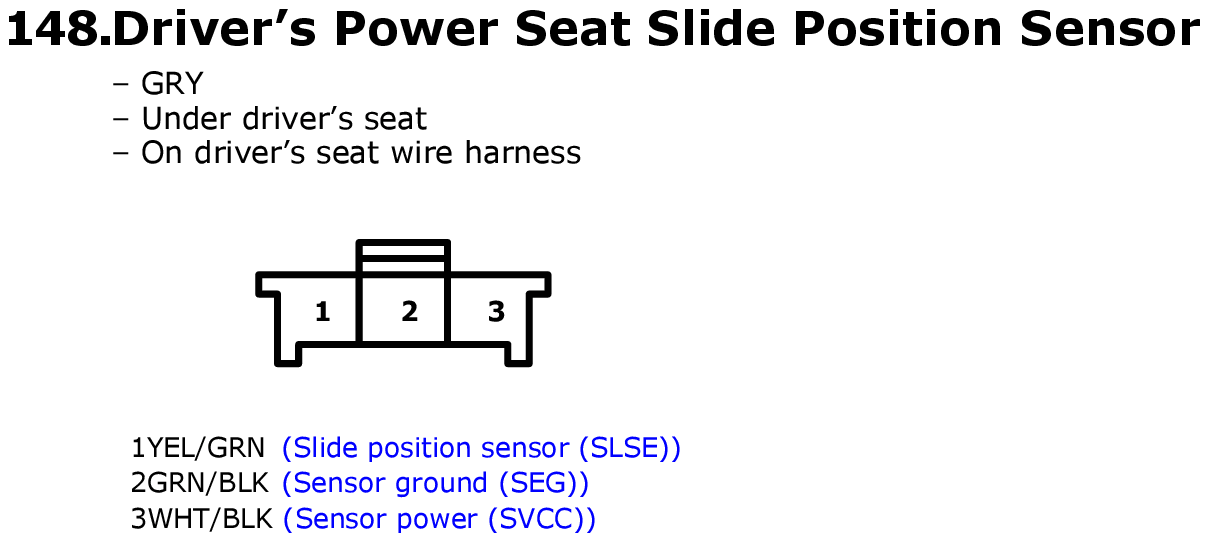

Fig 1: Driver's Power Seat Slide Position Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
