ECT Sensor 1 Connector End View
ECT Sensor 1 Connector End View

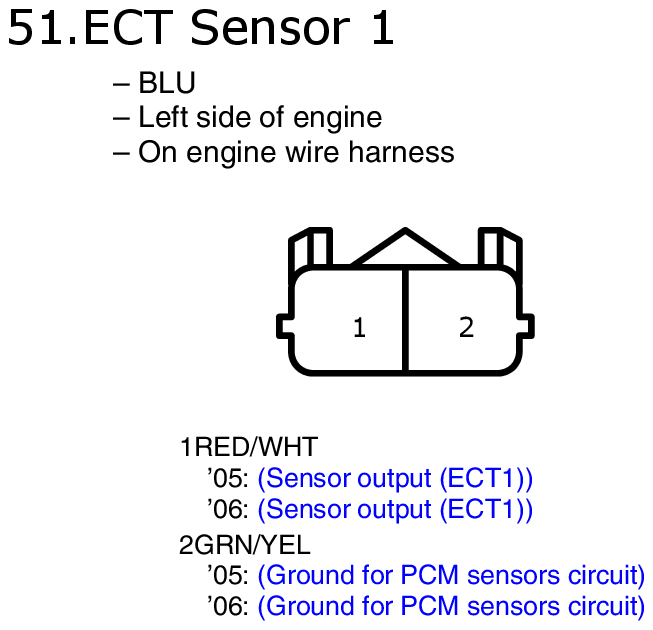

Fig 1: ECT Sensor 1 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

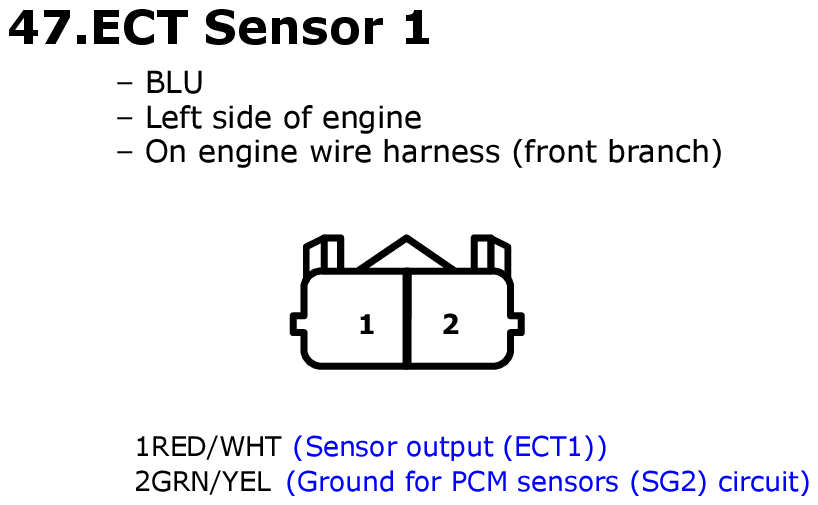

Fig 1: ECT Sensor 1 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: ECT Sensor 1 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
