HandsFreeLink Control Unit Connector End View
HandsFreeLink Control Unit Connector End View

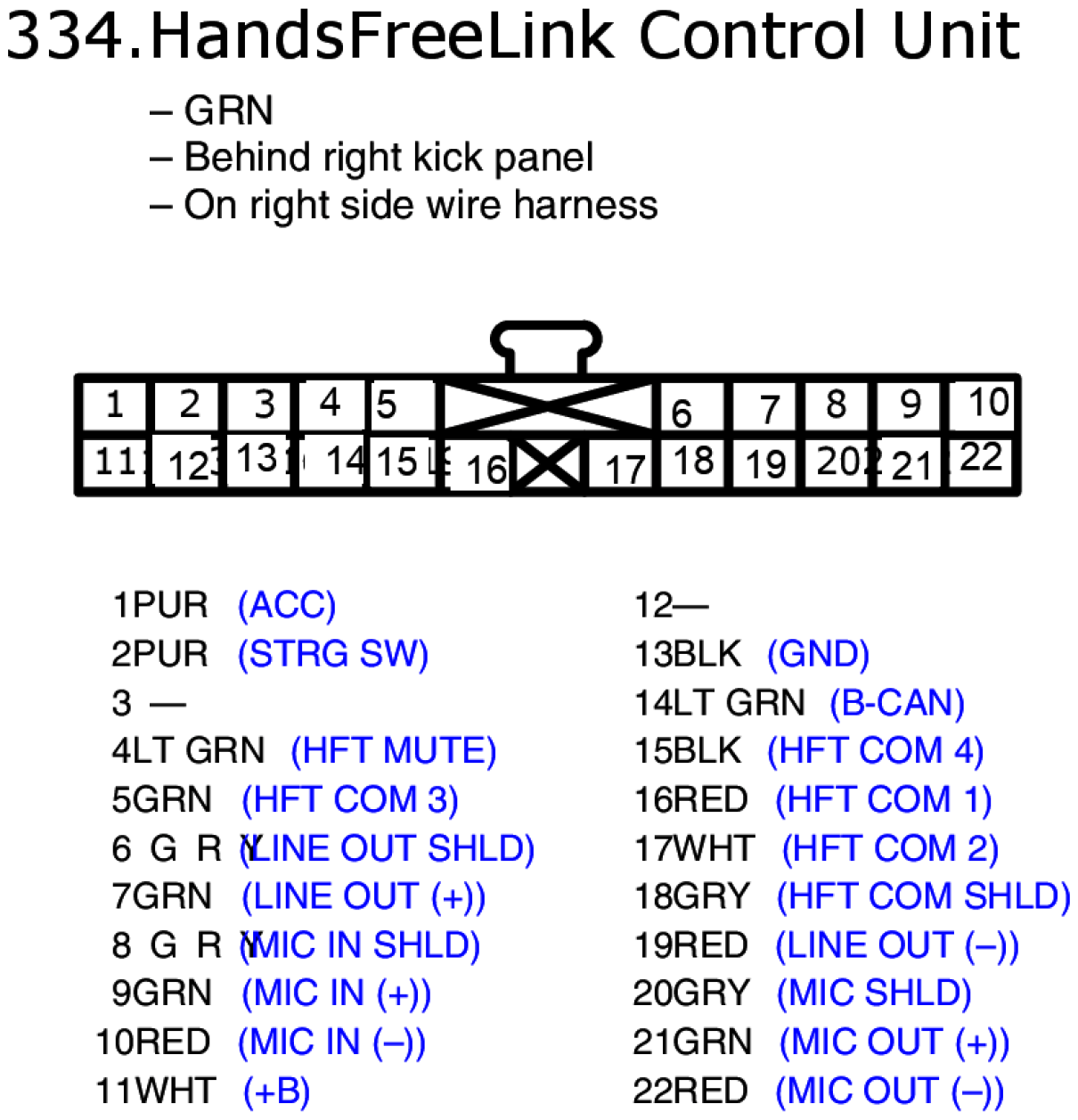

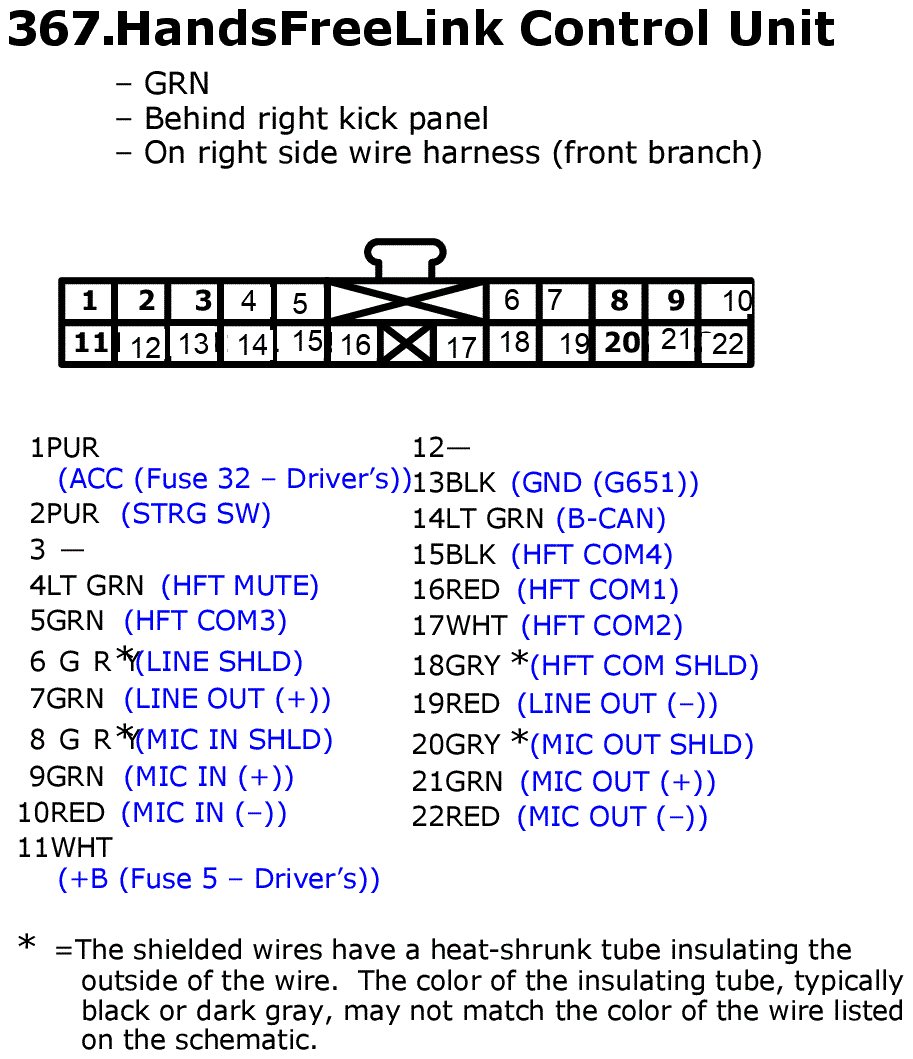

Fig 1: HandsFreeLink Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: HandsFreeLink Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
