Headlight Leveling Sensor Connector End View
Headlight Leveling Sensor Connector End View

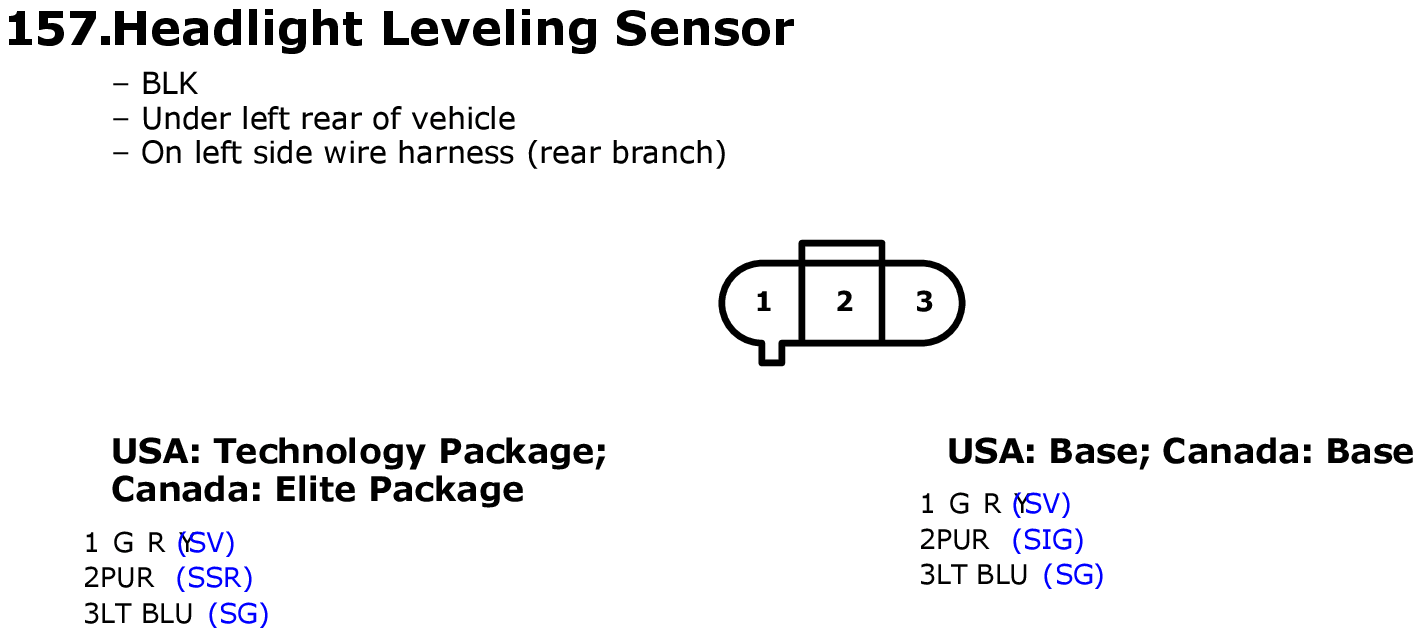

Fig 1: Headlight Leveling Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: Headlight Leveling Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
