Left Front Wheel Speed Sensor Connector End View
Left Front Wheel Speed Sensor Connector End View

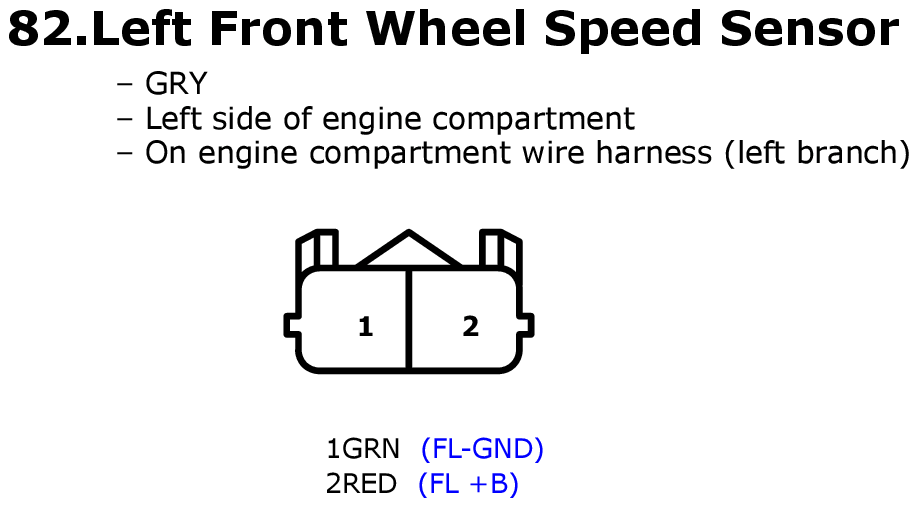

Fig 1: Left Front Wheel Speed Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: Left Front Wheel Speed Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
