Splash Shield Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body.

Remove the splash shield (A).
1. From both wheel arches, remove the clips (B) securing the front inner fender (C) and splash shield to the body.
2. From under the front bumper (D), remove the clips (E), and bolts (F).
3. Release the hooks (G) of the splash shield, then pull the splash shield out.

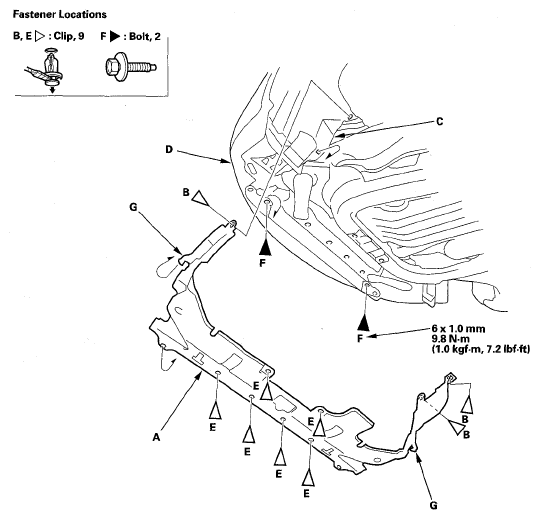

  Fig 1: Splash Shield Fastener Locations With Torque Specification
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the splash shield in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips into place securely.
