Ignition Coils Connector End View
Ignition Coils Connector End View

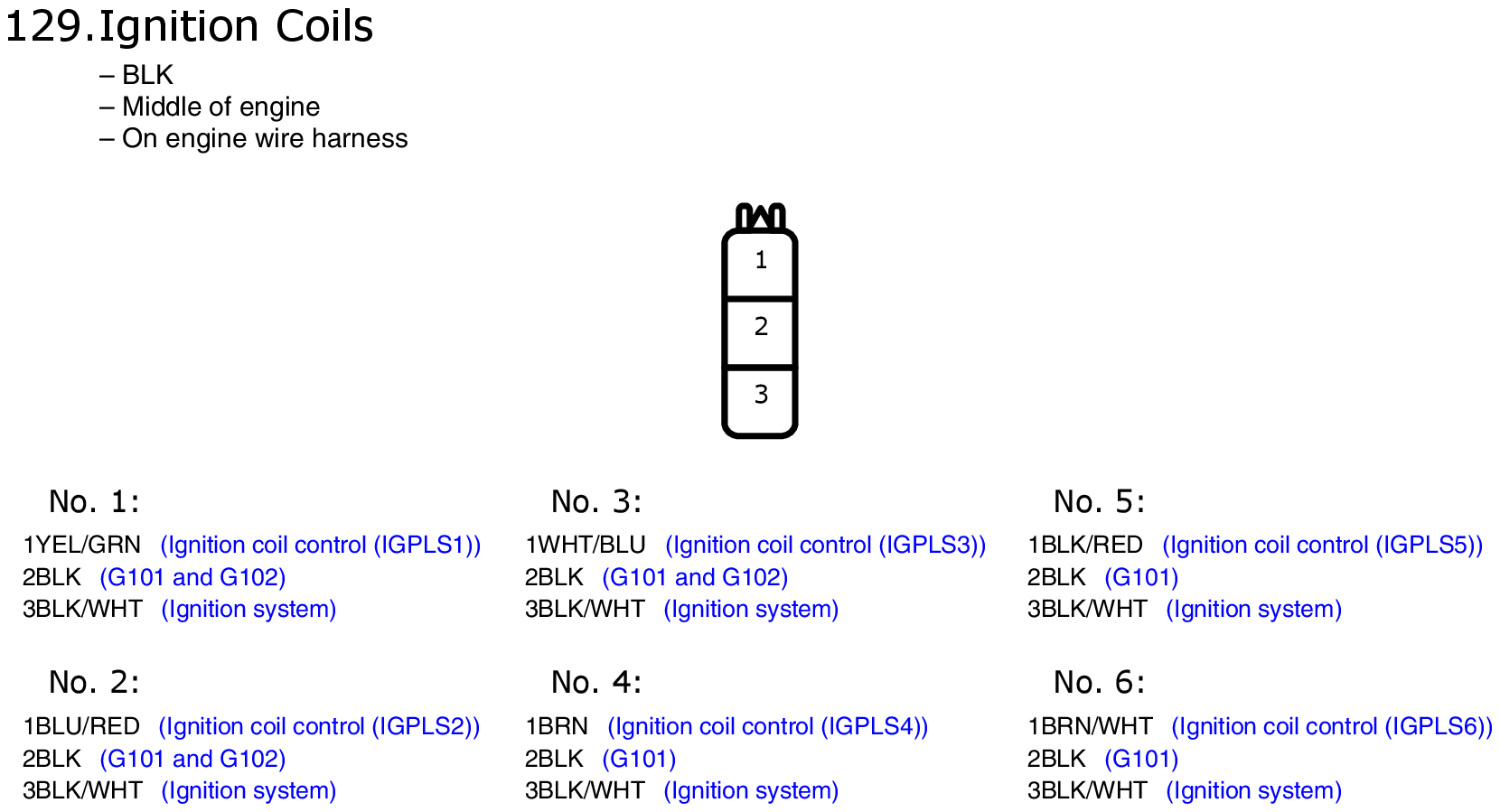

Fig 1: Ignition Coils Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

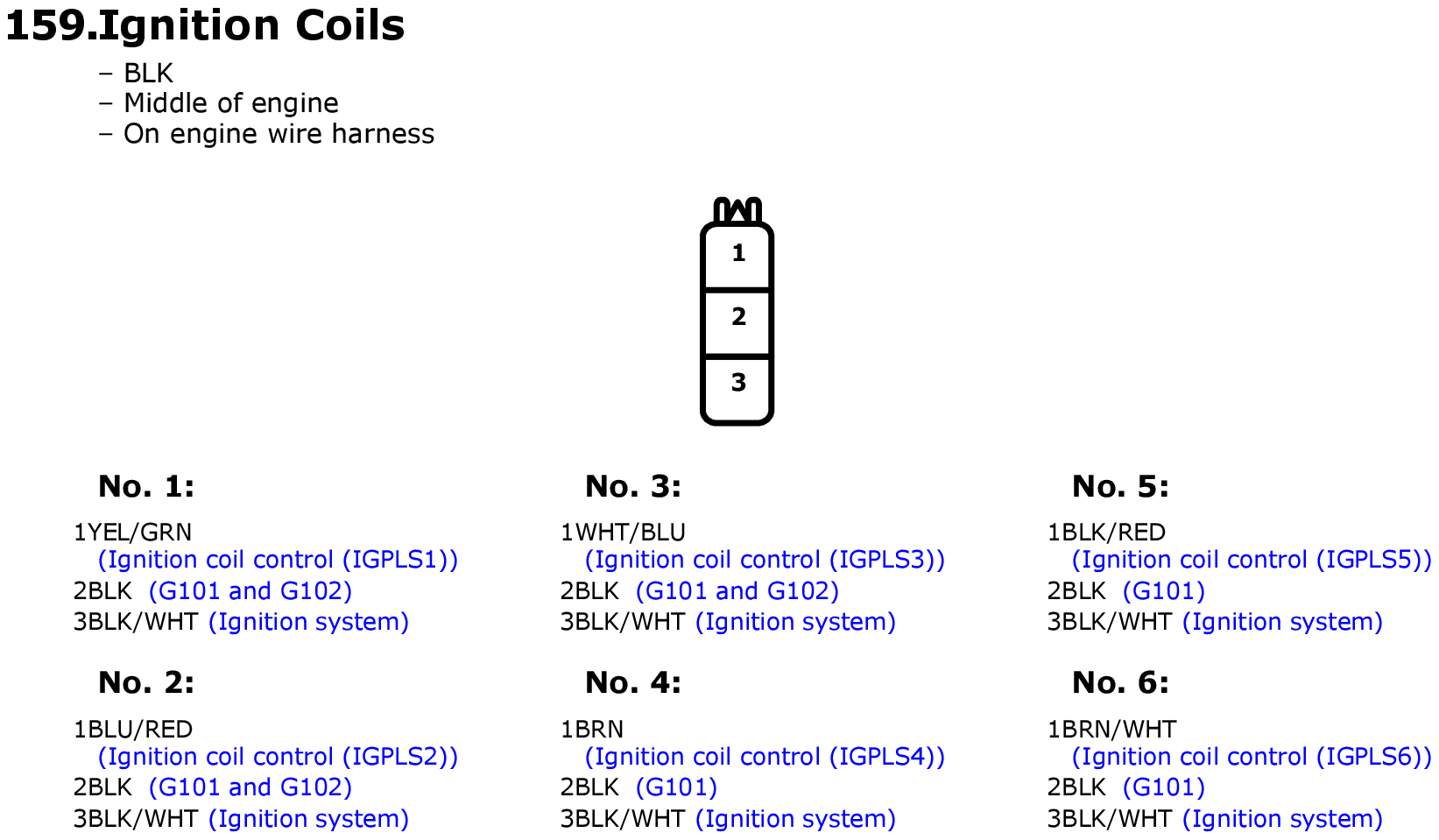

Fig 1: Ignition Coils Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
