Left Adaptive Front Lighting Gearbox Connector End View
Left Adaptive Front Lighting Gearbox Connector End View

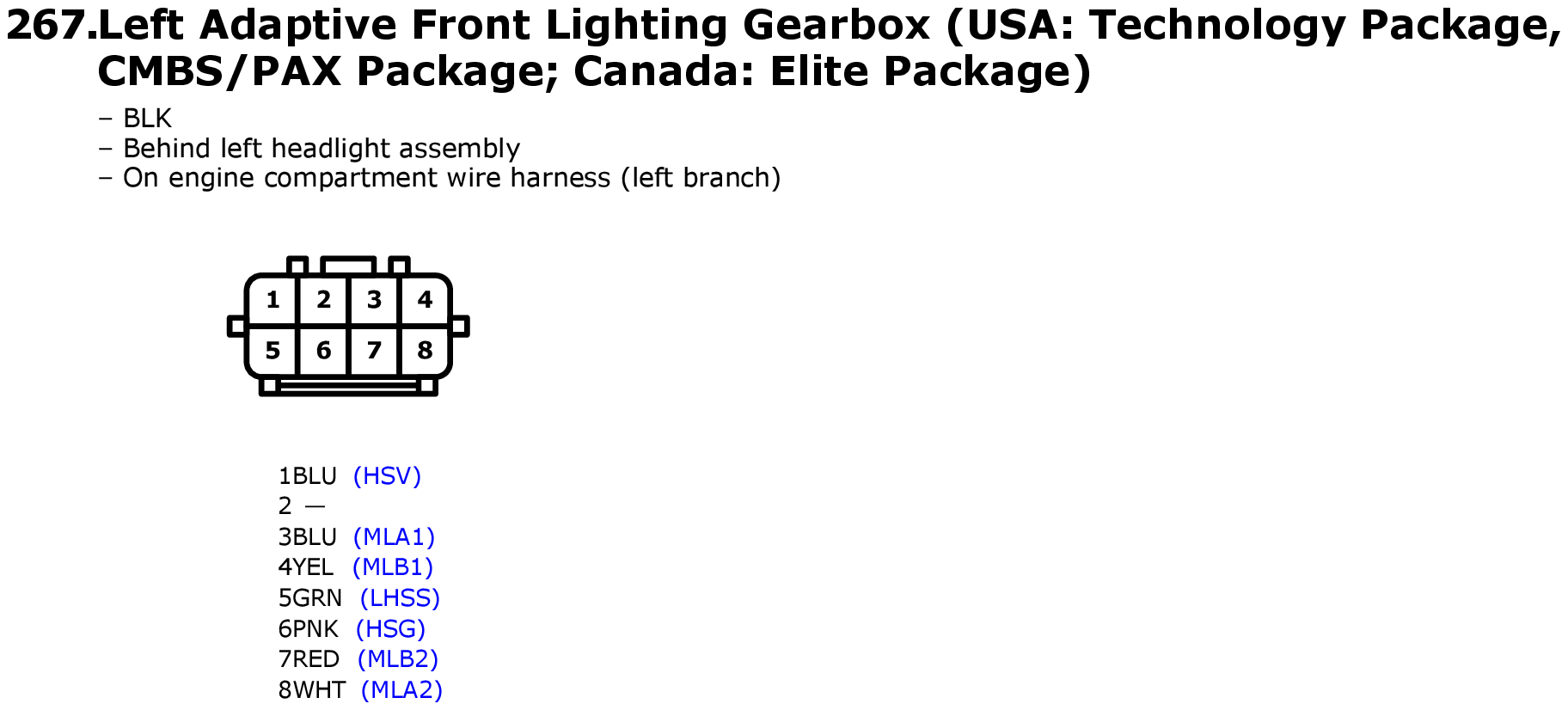

Fig 1: Left Adaptive Front Lighting Gearbox Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

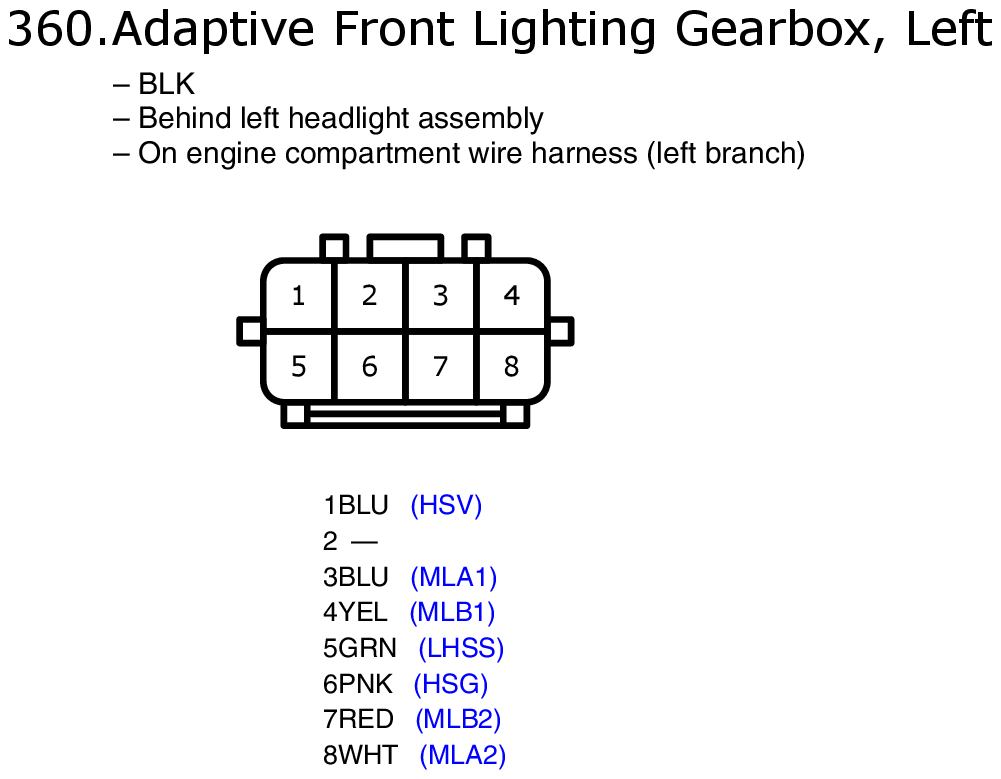

Fig 1: Left Adaptive Front Lighting Gearbox Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
