Left Rear Power Window Motor Connector End View
Left Rear Power Window Motor Connector End View

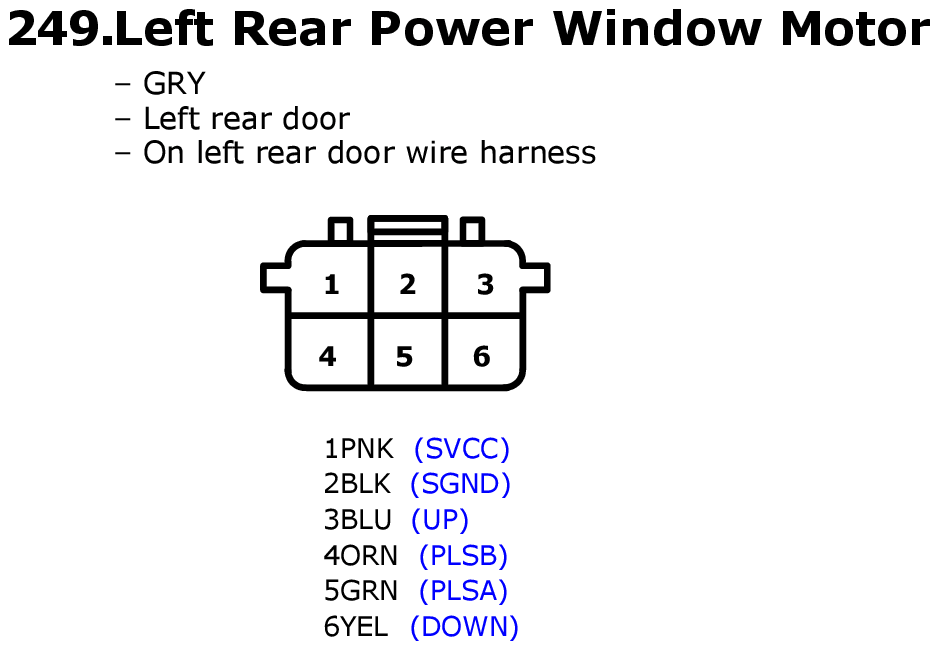

Fig 1: Left Rear Power Window Motor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

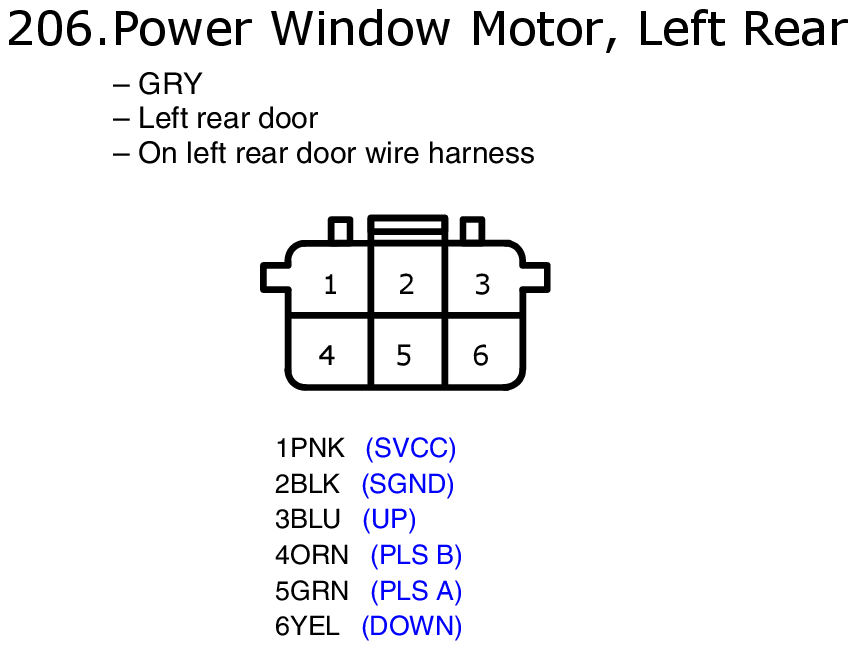

Fig 1: Left Rear Power Window Motor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
