Right Front Turn Signal Light Connector End View
Right Front Turn Signal Light Connector End View

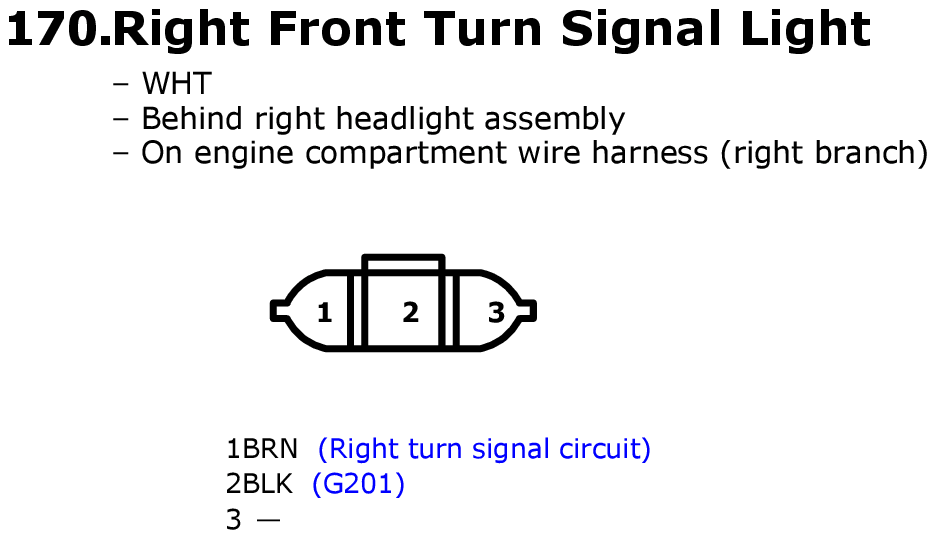

Fig 1: Right Front Turn Signal Light Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: Right Front Turn Signal Light Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
