Roof Console Connector End View
Roof Console Connector End View

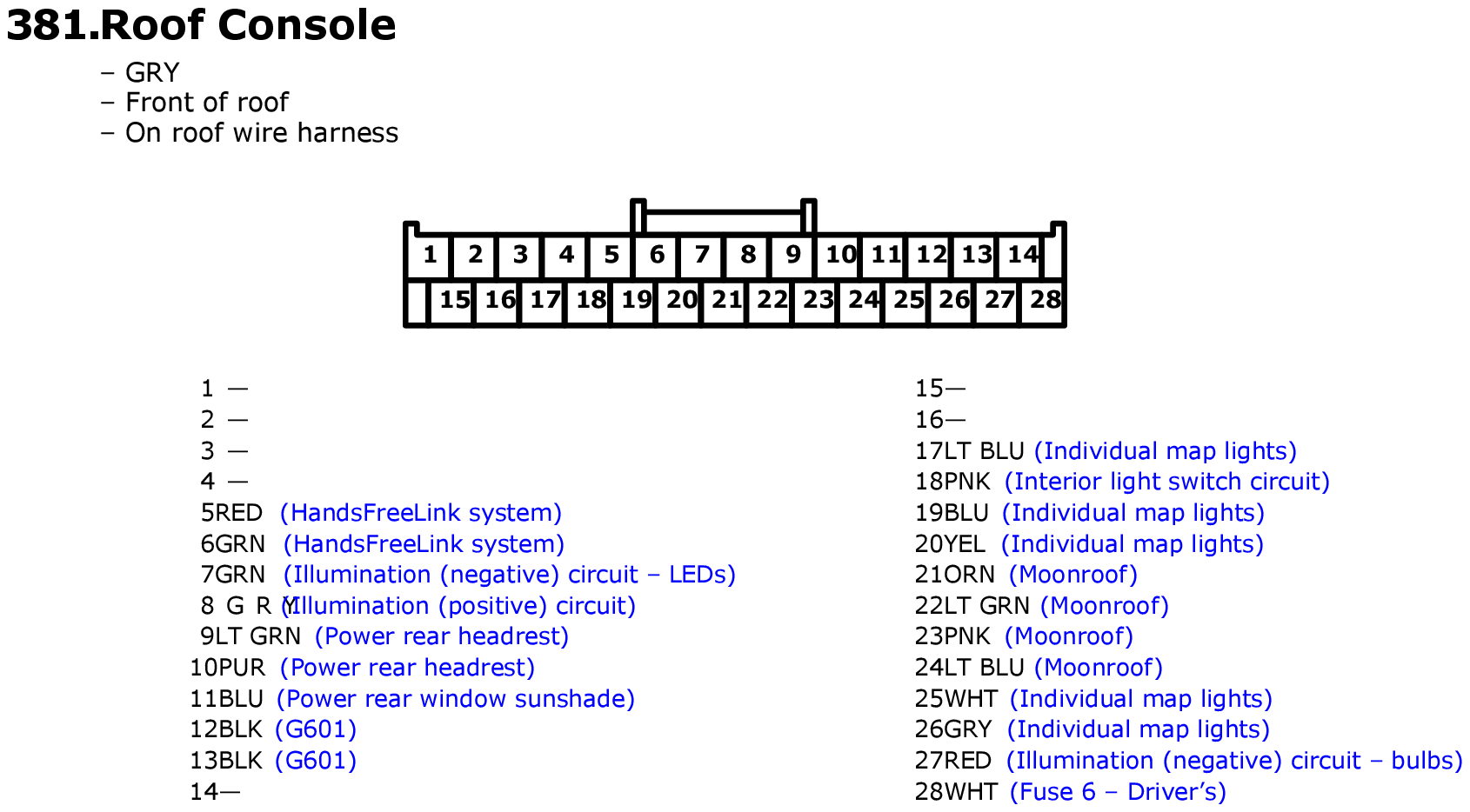

Fig 1: Roof Console Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

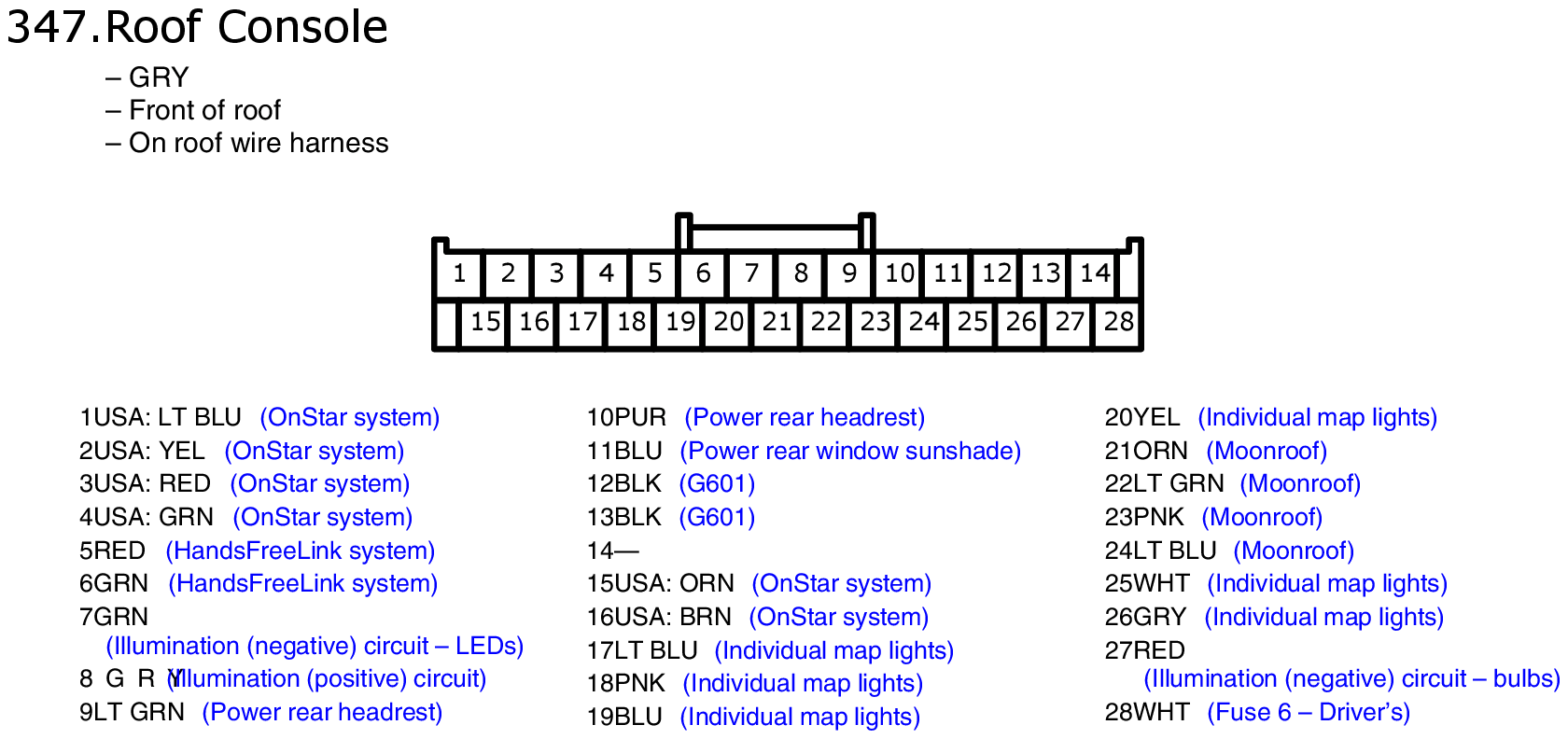

Fig 1: Roof Console Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
