Acura
›
2005
›
RL
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Connector End Views
›
Connector End Views
›
Under-hood Fuse/Relay Box Connector End View
Under-hood Fuse/Relay Box Connector End View

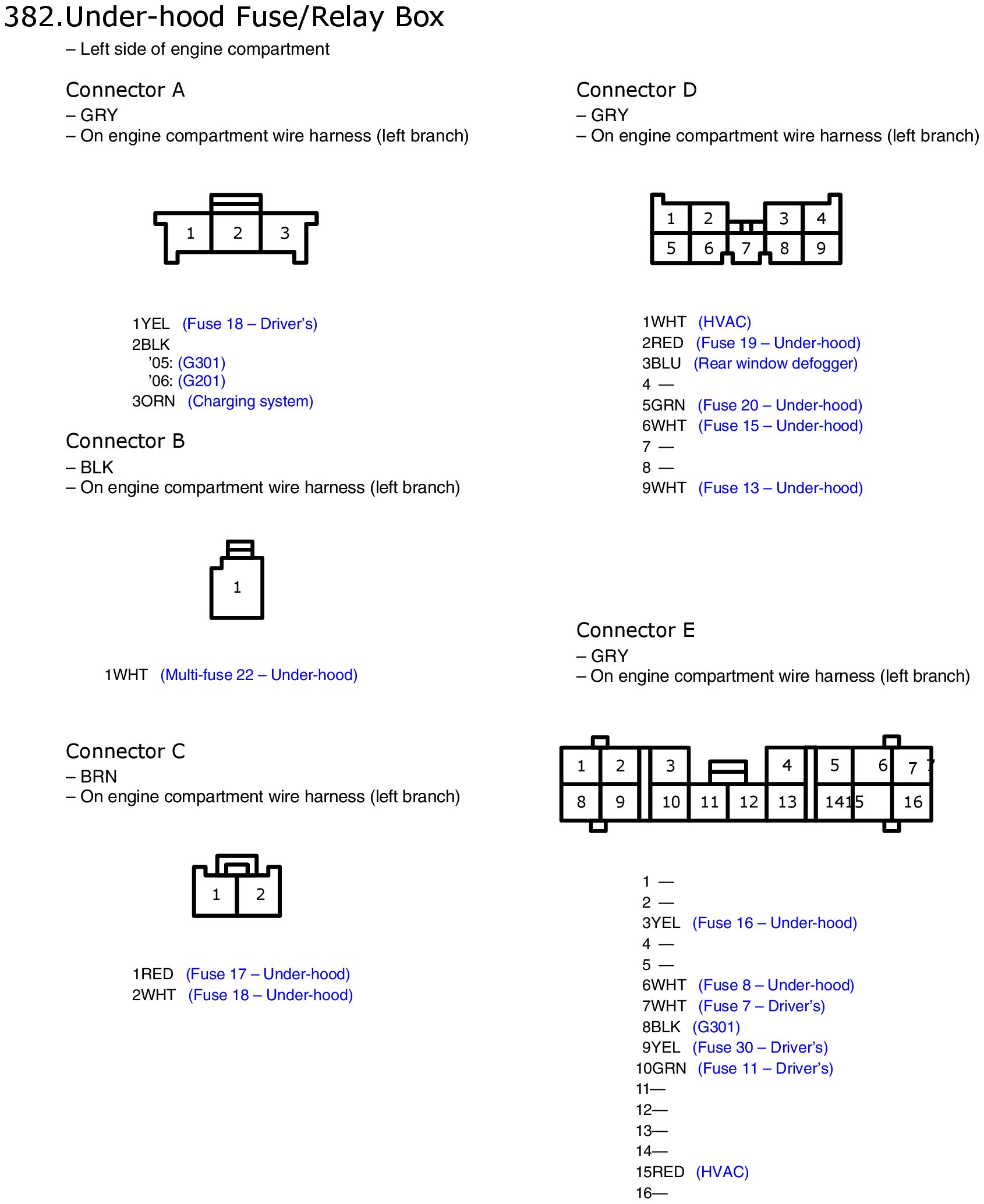

Fig 1: Under-hood Fuse/Relay Box Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

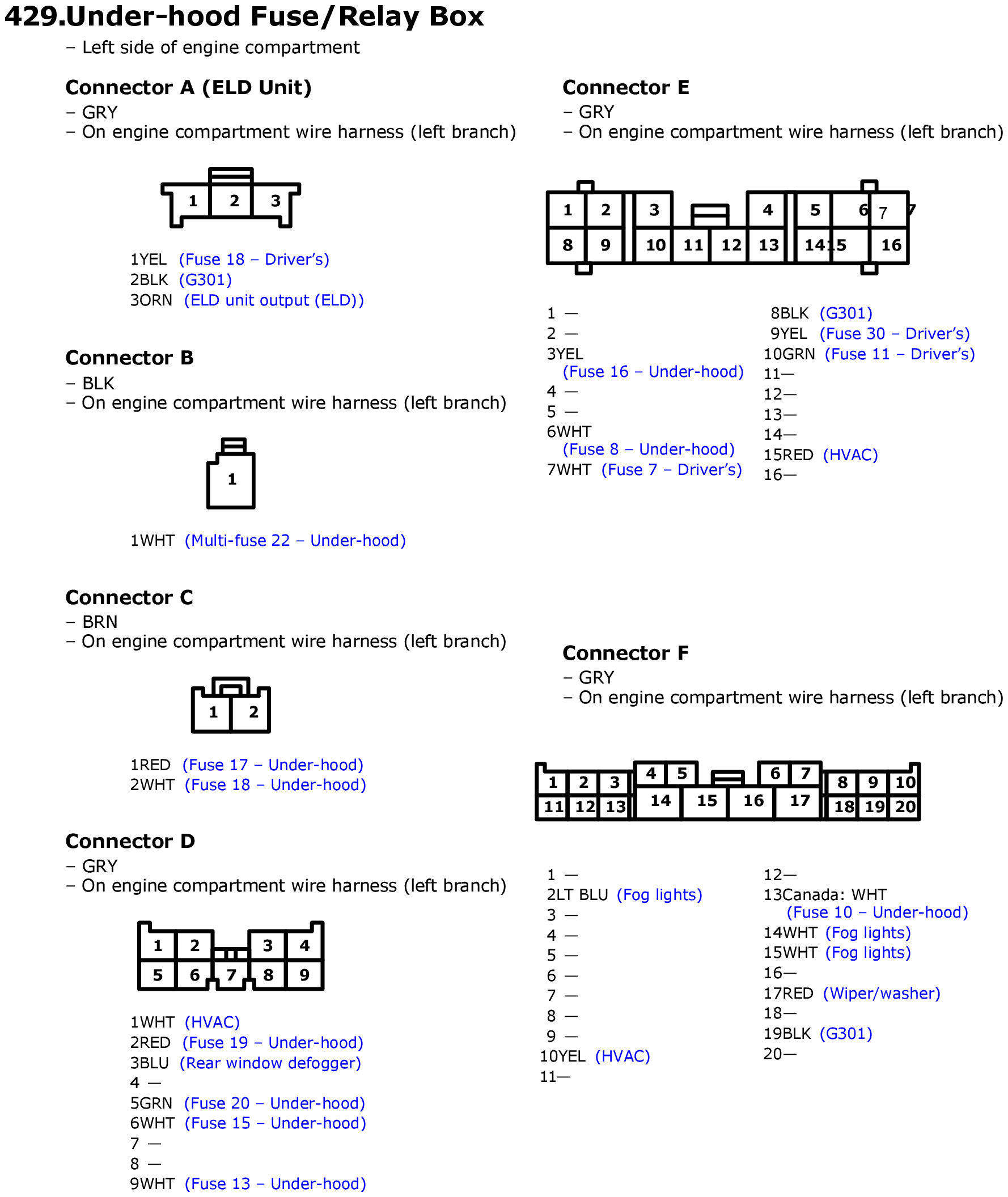

Fig 1: Under-hood Fuse/Relay Box Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
