Driver's Switch Panel Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the dashboard and related parts.

Gently pry up on the driver's switch panel (A) to release the hooks (B), then pull out the panel.

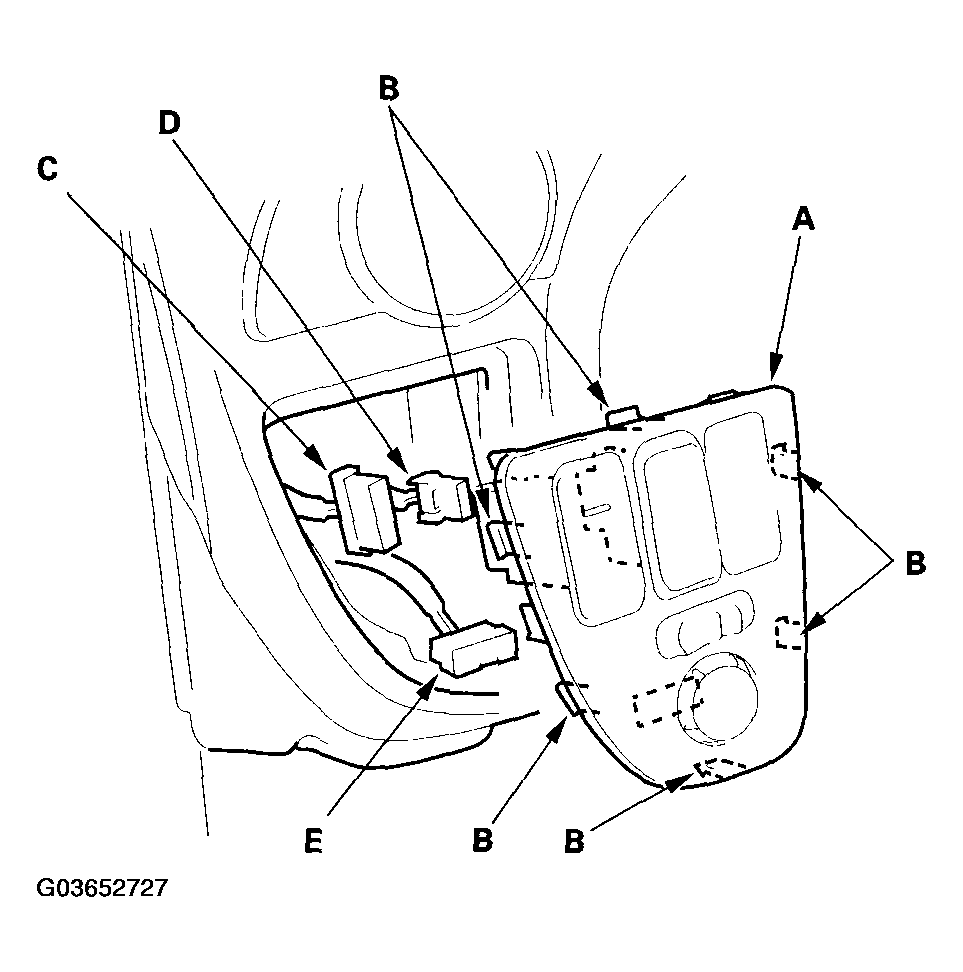

Fig 1: Removing Driver's Switch Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If equipped, disconnect the cruise control main switch connector (C), moonroof switch connector (D), and power mirror switch connector (E), then remove the panel.
Install the panel in the reverse order of removal, and note these items:
- Make sure each connector is plugged in properly.
- Push the hooks into place securely.
