2005-2006 models

  1. Remove the EVAP canister (see EVAP CANISTER REPLACEMENT  ).
  2. Remove the retaining clip (A).

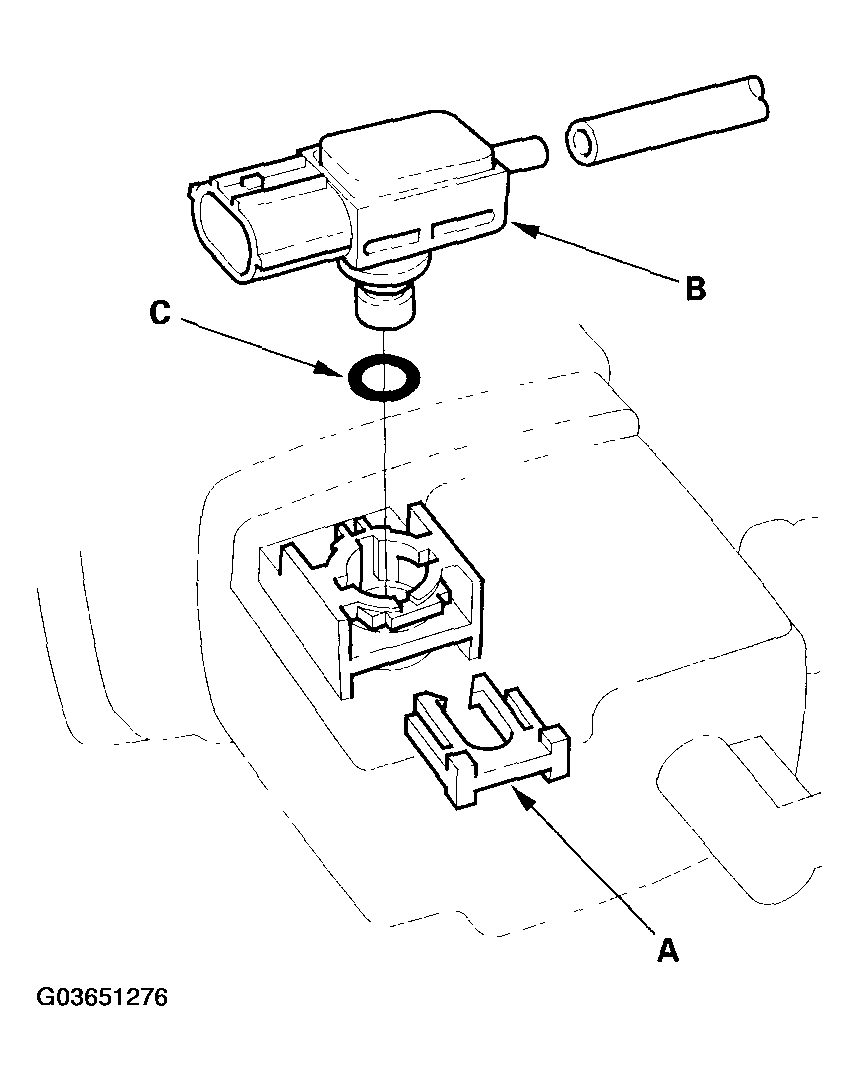

    Fig 1: Removing FTP Sensor
    G03651276Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the FTP sensor (B).
  4. Install the sensor in the reverse order of removal with a new O-ring (C).
