Outside Air Temperature Sensor Replacement

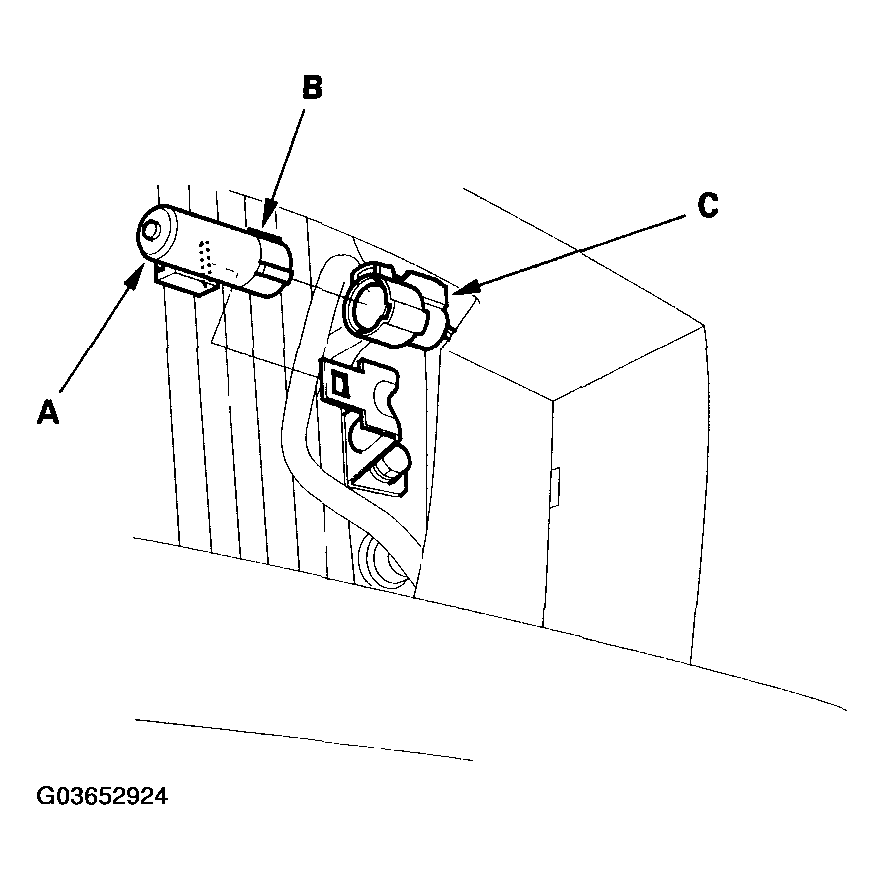

- Lift the tab (A) to release the lock, and remove the outside air temperature sensor (B), then disconnect the 2P connector (C).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the sensor in the reverse order of removal.
