Shift Solenoid Valve C Replacement

  1. Disconnect the shift solenoid valve C connector, and remove shift solenoid valve C.

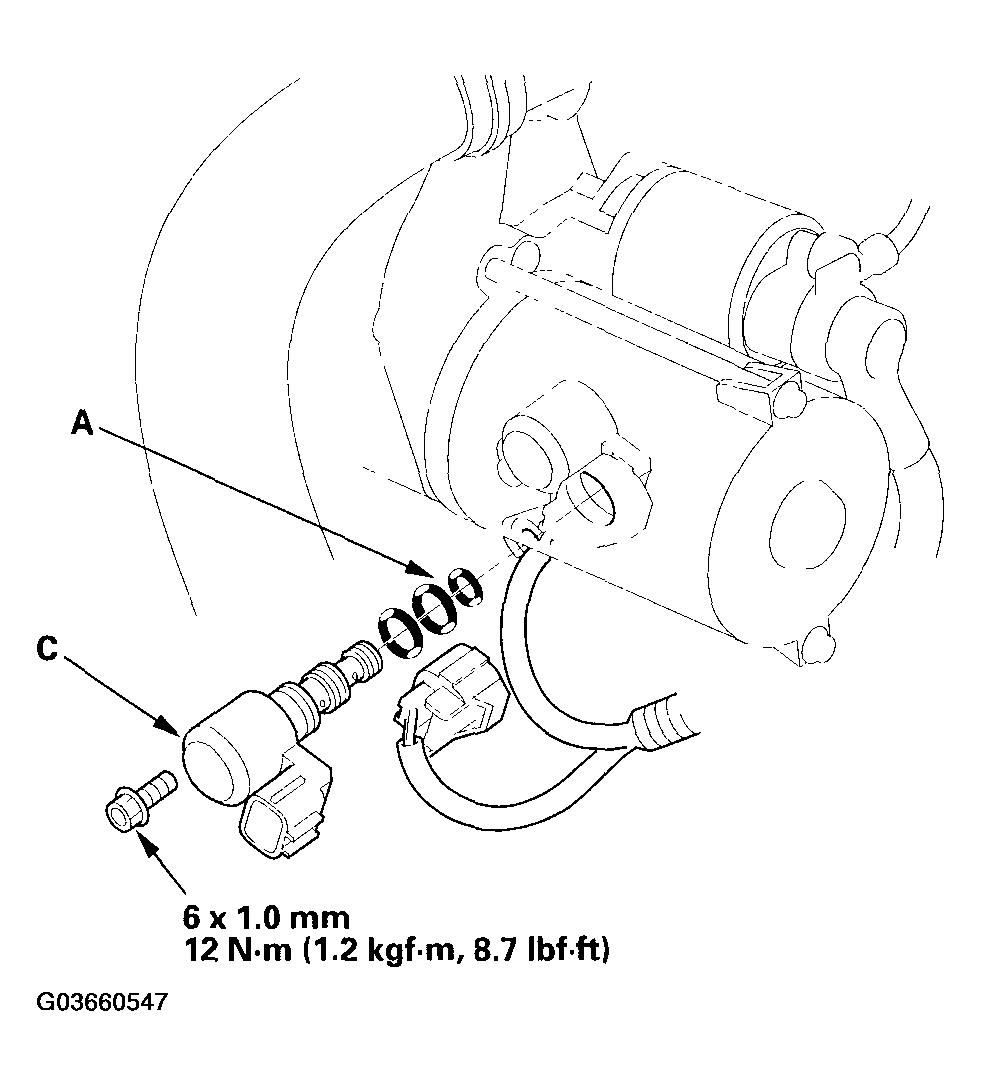

    Fig 1: Identifying Shift Solenoid Valve (C) And O-Rings (A)
    G03660547Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install a new shift solenoid valve C with new O-rings (A). While installing the solenoid valve, do not allow dust or other foreign particles to enter the transmission.
  3. Check the connector for corrosion, dirt, and oil, then connect the connector.
