Clock (except Navigation) Connector End View
Clock (except Navigation) Connector End View

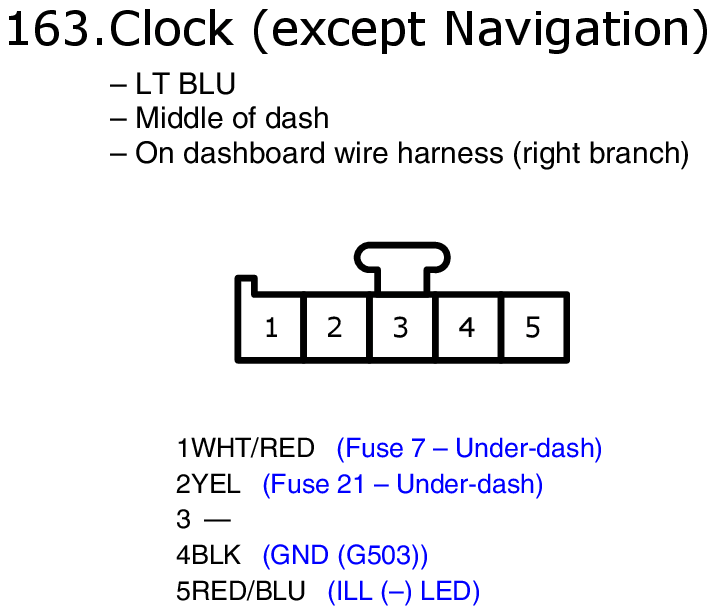

Fig 1: Clock (except Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
