Trip Meter Select/Reset/Information Switch Connector End View
Trip Meter Select/Reset/Information Switch Connector End View

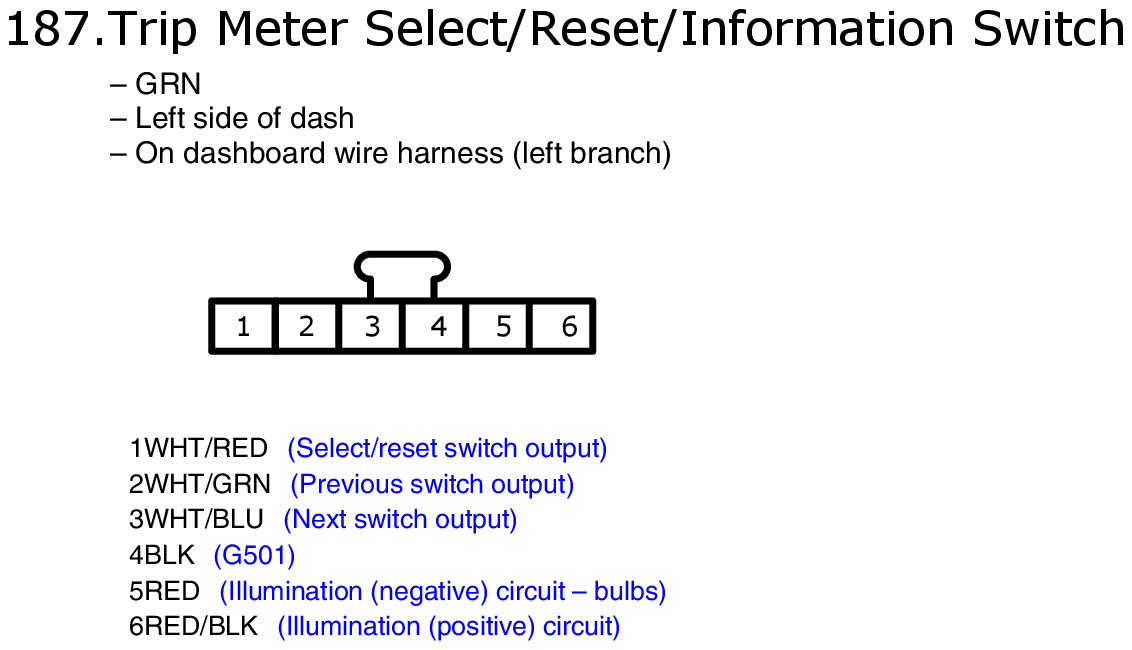

Fig 1: Trip Meter Select/Reset/Information Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
