Lubricants And Fluids

For details of lubrication points and type of lubricants to be applied, refer to various work procedures (such as Assembly/Reassembly, Replacement, Overhaul, Installation, etc.)

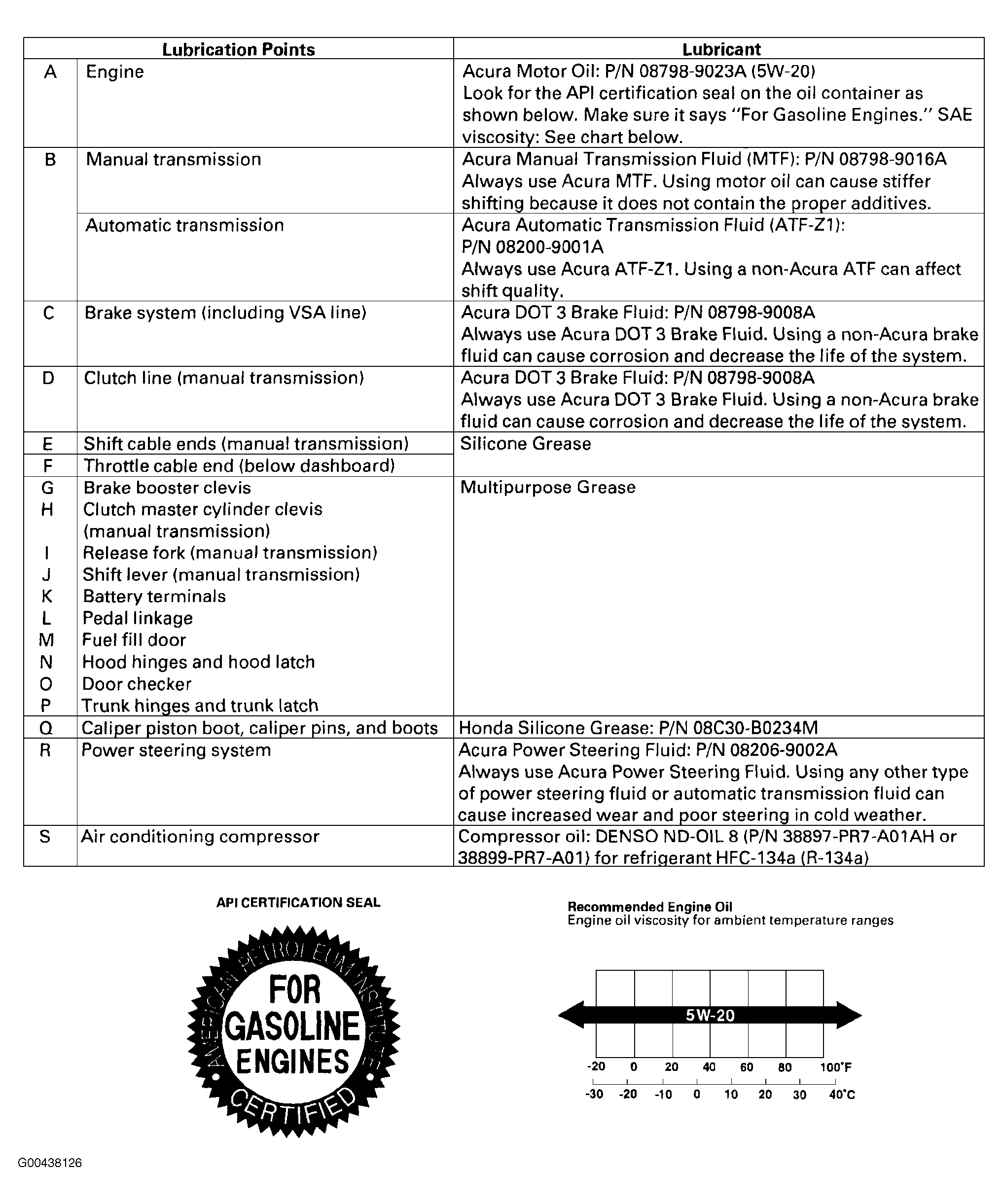

Fig 1: Lubricants Points And Lubricant Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

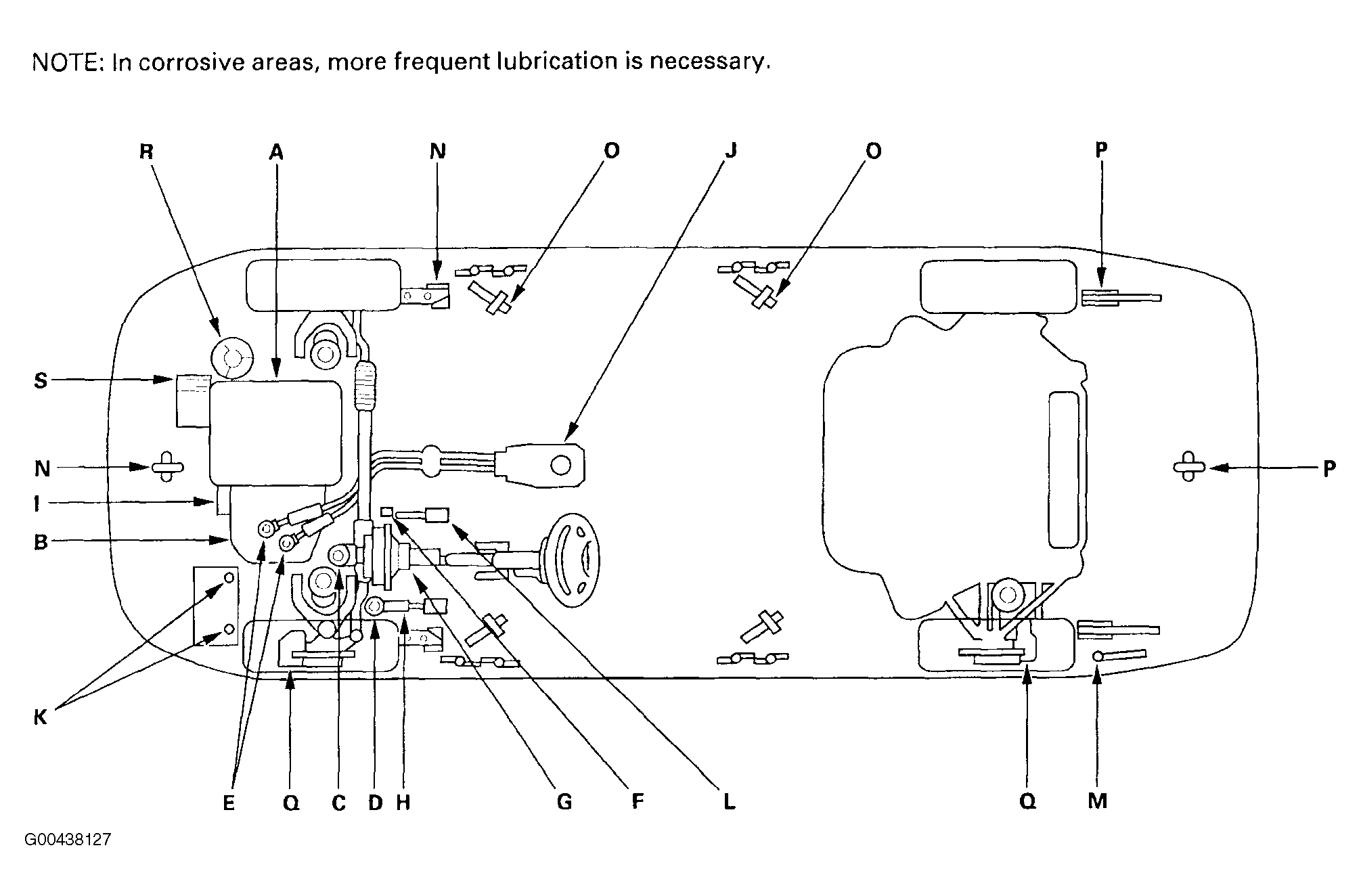

Fig 2: Identifying Lubricant Points

Courtesy of AMERICAN HONDA MOTOR CO., INC.
