Power Window Switch, Right Rear Connector End View

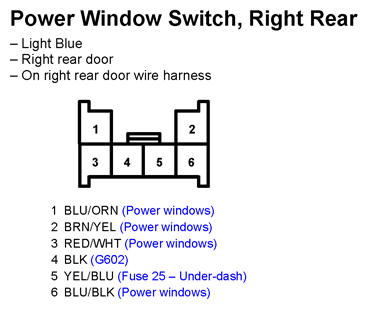

Fig 1: Power Window Switch, Right Rear Connector End View
G11249436
